Free End Synchronous Toothed Belt-Polyurethane-Neoprene-CBOG/CBO

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

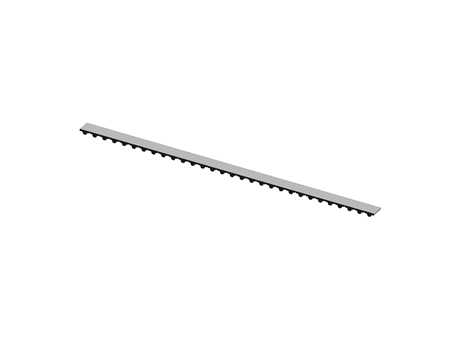

Description	Free End Synchronous Toothed Belt-Polyurethane-Neoprene CBOG-XL025-30
Part number	CBOG-XL025-30

CAD models

Product selection

Index	Selector	Belt Type	Belt Width	Teeth Number	Belt Width
1	1	XL	025	74～1049	6.4
2	2	XL	037	74～1049	9.5
3	10	XL	050	74～1049	12.7
4	3	L	050	74～1049	12.7
5	4	L	075	56～787	19.1
6	5	L	100	56～787	25.4
7	6	H	075	56～787	19.1
8	7	H	100	56～787	25.4
9	8	H	150	140～2000	38.1
10	9	H	200	140～2000	50.8

Teeth Number

Material
