Floating Joints Flange Mounting - Slide FCJY/FCJMY Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

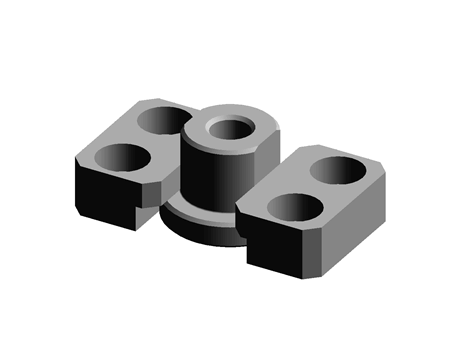

Description	Floating Joints Flange Mounting - Slide FCJY6
Part number	FCJY6

CAD models

Product selection

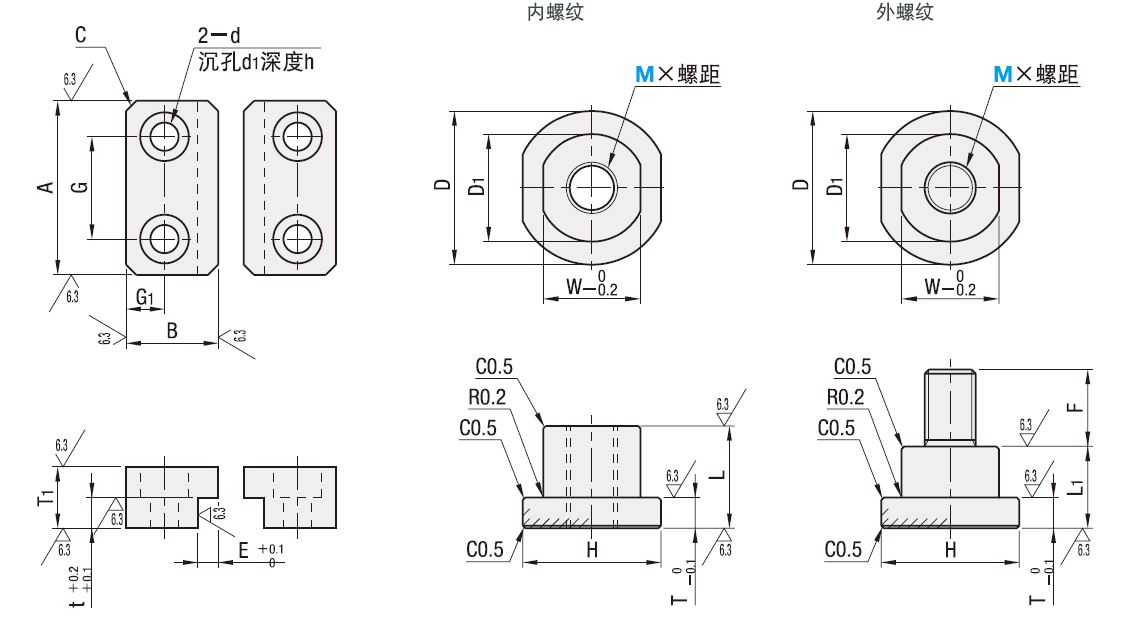

Index	Selector	M	M-Pitch	L	D	D1	H	T	W	A	G	B	G1	E	t	T1	d	d1	F	H	C
1	4	6	6X1.0	14	20	14	4.5	4	12	22	12	14	6	3	4	8	4.5	8	0	18	2
2	5	8	8X1.25	17	23	16	4.5	5	14	25	14	14	6	3	5	11	4.5	8	0	20	2
3	1	10	10X1.25	21	30	21	5	6	19	34	20	19	8	4	6	13	5.5	9.5	0	27	2
4	2	14	14X1.5	25	38	27	6.5	7	24	42	26	22	9	5	7	15	6.5	11	0	34	3
5	3	18	18X1.5	28	45	32	8	8	30	48	30	25	10	5	8	15	10	14	0	40	3
6	14	22	22X1.5	33	56	40	8	10	36	60	38	28	11	7	10	18	10	14	0	50	3
7	6	6	6X1.0	11	20	14	4.5	4	12	22	12	14	6	3	4	8	4.5	8	13	18	2
8	7	8	8X1.25	14	23	16	4.5	5	14	25	14	14	6	3	5	11	4.5	8	15	20	2
9	8	10	10X1.5	16	30	21	5	6	19	34	20	19	8	4	6	13	5.5	9.5	18	27	2
10	15	16	16X2.0	19	38	27	6.5	7	24	42	26	22	9	5	7	15	6.5	11	30	34	3
11	16	20	20X2.5	20	45	32	8	8	30	48	30	25	10	5	8	15	10	14	32	40	3
12	17	22	22X2.5	23	56	40	8	10	36	60	38	28	11	7	10	18	10	14	35	50	3
13	9	6	-	0	20	14	4.5	4	12	22	12	14	6	3	4	8	4.5	8	0	18	2
14	10	8	-	0	23	16	4.5	5	14	25	14	14	6	3	5	11	4.5	8	0	20	2
15	11	10	-	0	30	21	5	6	19	34	20	19	8	4	6	13	5.5	9.5	0	27	2
16	12	14	-	0	38	27	6.5	7	24	42	26	22	9	5	7	15	6.5	11	0	34	3
17	13	16	-	0	38	27	6.5	7	24	42	26	22	9	5	7	15	6.5	11	0	34	3
18	18	18	-	0	45	32	8	8	30	48	30	25	10	5	8	15	10	14	0	40	3
19	19	20	-	0	45	32	8	8	30	48	30	25	10	5	8	15	10	14	0	40	3
20	20	22	-	0	56	40	8	10	36	60	38	28	11	7	10	18	10	14	0	50	3

Parts

FCJY:Tapped Set
