By Shenzhen Shiruida Automation Equipment Co.,Ltd.

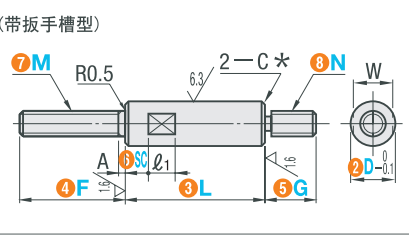

External thread shape at both ends of circular pillar HDNEPS/HDEKPS/HDPTPS/HDSTPS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	External thread shape at both ends of circular pillar HDNEPS5-15-F5-G5-SC0-M2.6-N2.6
Part number	HDNEPS5-15-F5-G5-SC0-M2.6-N2.6

CAD models

Request for quotation

Product selection

Index	Selector	D	W	l1	A
1	1	5	4	8	1
2	2	6	5	8	1
3	3	8	7	8	1.6
4	4	10	8	8	2
5	5	12	10	10	2.5
6	6	15	13	10	3
7	7	20	17	10	3.5
8	8	25	22	10	4
9	9	30	27	15	5
10	10	35	30	15	6
11	11	40	36	20	6
12	12	50	41	20	6

Type

M

N

L

L tolerance alteration

Undercut machining(FC)

F

SC

G
