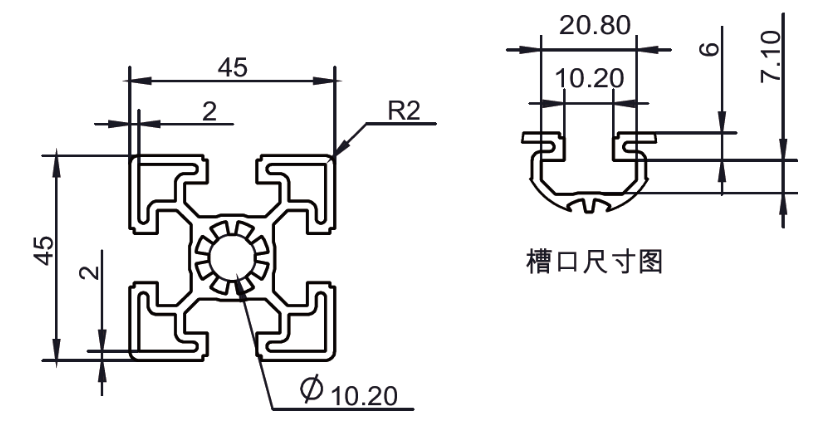

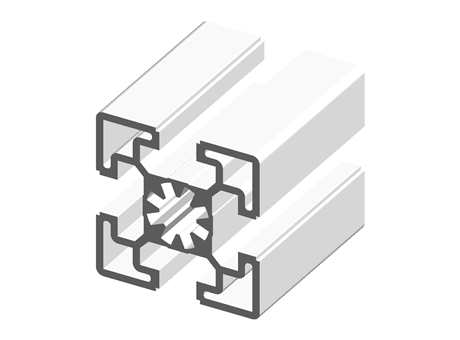

European Aluminum Profile E45 Series - 4545

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Aluminum Profile HA01-E-4545-50
Part number	HA01-E-4545-50
Omniclass number	23.13.17.00

CAD models

Product selection

Index	Selector	Code	Series	Material	Surface Treatment	Type	Moment of inertian Lx (mm4)	Moment of inertian Ly (mm4)	Moment of resistance Wx (mm³)	Moment of resistance Wy (mm³)	Weight per metre (kg/m)	Superficial Area (mm²)
1	1	HA01	E	6063-T5	Sandblasting Oxidation	4545	13.2x10~4	13.2x10~4	5.9x10~3	5.9x10~3	1.8	675
2	2	HA02	E	6063-T5	Black Anodized	4545	13.2x10~4	13.2x10~4	5.9x10~3	5.9x10~3	1.8	675

Optional - One side

Optional - Another side

None
