By Shenzhen Shiruida Automation Equipment Co.,Ltd.

E Type Retaining Ring EANTW/EANTWS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	E Type Retaining Ring EANTW1.2
Part number	EANTW1.2

CAD models

Request for quotation

Product selection

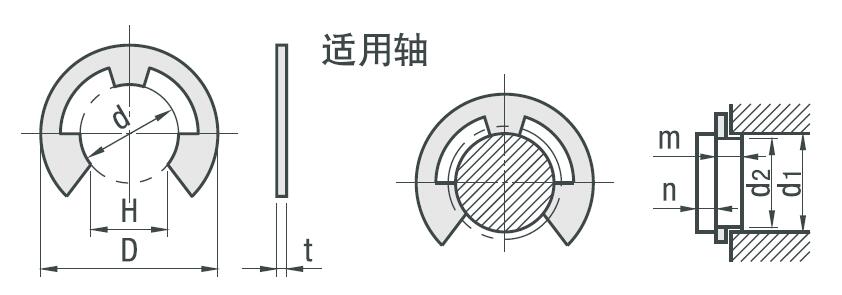

Index	Selector	No.	d	D	H	t	d1min	d1max	d2	m	n
1	1	1.2	1.2	3	1	0.3	1.4	2	1.2	0.4	0.6
2	2	1.5	1.5	4	1.3	0.4	2	2.5	1.5	0.5	0.8
3	3	2	2	5	1.7	0.4	2.5	3.2	2	0.5	1
4	4	2.5	2.5	6	2.1	0.4	3.2	4	2.5	0.5	1
5	5	3	3	7	2.6	0.6	4	5	3	0.7	1
6	6	4	4	9	3.5	0.6	5	7	4	0.7	1.2
7	7	5	5	11	4.3	0.6	6	8	5	0.7	1.2
8	8	6	6	12	5.2	0.8	7	9	6	0.9	1.2
9	9	7	7	14	6.1	0.8	8	11	7	0.9	1.5
10	10	8	8	16	6.9	0.8	9	12	8	0.9	1.8
11	11	9	9	18	7.8	0.8	10	14	9	0.9	2

Material

Documentation

Technical Documents
