Chain Couplings CAPC/CACH/CABH Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

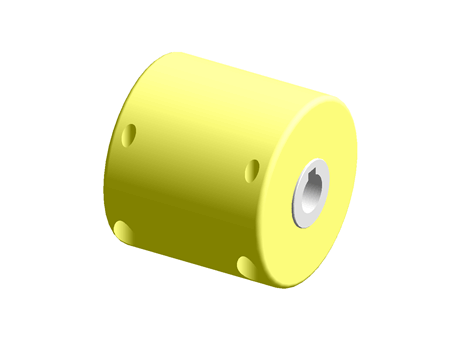

Description	Chain Couplings CAPC3012-14-14
Part number	CAPC3012-14-14

CAD models

Request for quotation

Product selection

Type

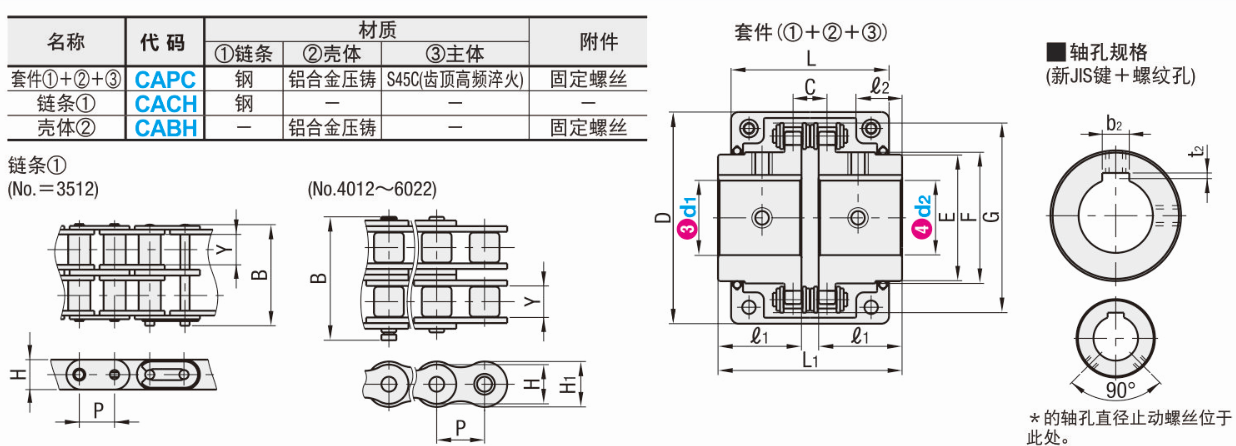

Index	Selector	No.	D	L	Weight (kg)	Number of links	P	H	H1	B	Y	E	F	G	L1	l1	l2	C	Maximum speed((r/min))	Permissible transfer torque(bellow 50rpm) (N.m)
1	11	3012	69	63	0.6	12	9.525	8.1	8.1	23.85	5.72	25	26.5	45	64.8	29.8	16	10.2	250	100
2	12	4012	77	72	0.9	12	12.7	10.41	12.06	32.78	7.9	33	36	62	79.4	36	17	14.4	250	218
3	13	4014	84	75	1.2	14	12.7	10.41	12.06	32.78	7.9	43	45	69	79.4	36	17	14.4	200	296
4	14	4016	92	75	1.7	16	12.7	10.41	12.06	32.78	7.9	48	51	77	87.4	40	23	14.4	200	386
5	15	5014	101	85	2.3	14	15.875	13.01	15.08	41.45	9.54	53	56	86	99.7	45	24	18.1	150	563
6	16	5016	111	85	3.1	16	15.875	13.01	15.08	41.45	9.54	60	63	96	99.7	45	24	18.1	150	735
7	17	5018	122	85	3.8	18	15.875	13.01	15.08	41.45	9.54	70	73	106	99.7	45	24	18.1	150	931
8	18	6018	142	106	7.0	18	19.05	15.64	18.09	52.3	12.7	85	88	127	123.5	56	28	22.8	100	1754
9	19	6022	168	117	11.7	22	19.05	15.64	18.09	52.3	12.7	110	115	152	123.5	56	28	22.8	100	2372

d1

d2

Documentation

Technical document

Contact the supplier
