Cantilever Pin -For Tensioning Wheel-BDFKA/BDPFKA/BDSFKA/BDFNKA/BDPFNKA/BDSFNKA

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

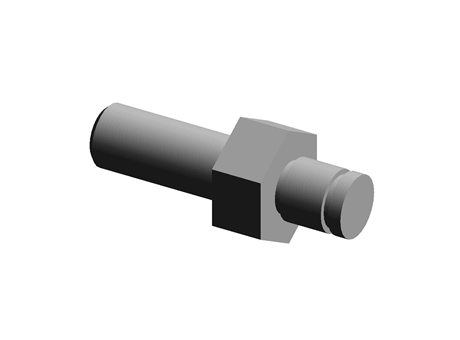

Description	Cantilever Pin -For Tensioning Wheel- BDFKA6-5-F5-G5
Part number	BDFKA6-5-F5-G5

CAD models

Product selection

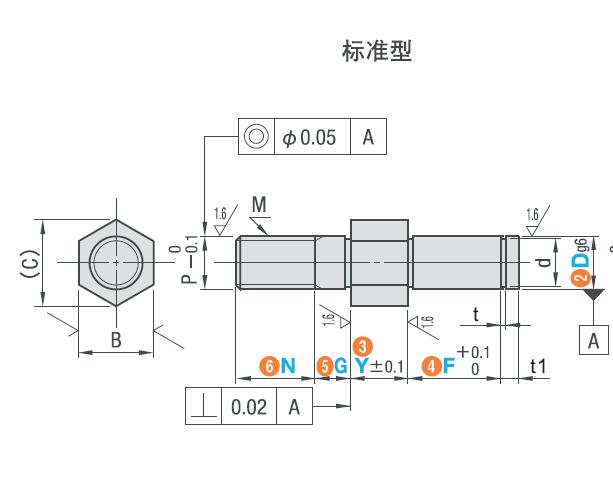

Index	Selector	D	Y	F	G	N_Fixed	N_Appointed	P	M	V	B	C	d	t	t1
1	4	6	5～60	5～100	5～10	9	6～12	6	M6	8	10	11.5	5	0.7	2
2	5	8	5～60	5～100	5～10	12	8～16	8	M8	10	12	13.9	7	0.9	3
3	6	10	5～60	5～100	5～10	15	10～20	10	M10	13	14	16.2	9.6	1.15	3
4	7	12	5～60	10～100	5～15	18	12～24	12	M12	15	17	19.6	11.5	1.15	3
5	8	15	5～60	10～100	5～15	18	12～24	12	M12	18	19	21.9	14.3	1.15	4
6	1	20	5～60	10～100	5～20	30	20～40	20	M20	24	27	31.2	19	1.35	4
7	2	25	5～60	10～100	5～20	30	20～40	20	M20	29	30	34.6	23.9	1.35	5
8	3	30	5～60	10～100	5～20	30	20～40	20	M20	34	36	41.6	28.6	1.65	5

Type

code_material

Retaining Ring

Processing push-pull thread

Not Available
