Cantilever Pin - Flange Type - Retaining Ring Type BDFFA/BDPFFA/BDSFFA/BDFEA/BDPFEA/BDSFEA

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

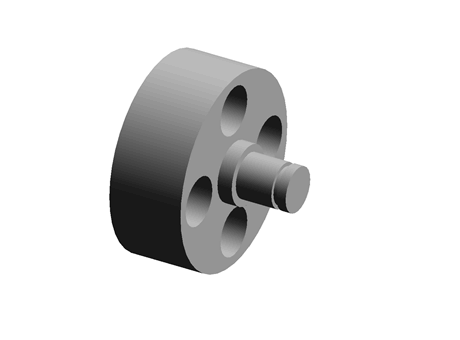

Description	Cantilever Pin - Flange Type - Retaining Ring Type BDFFA6-12-F5
Part number	BDFFA6-12-F5

CAD models

Product selection

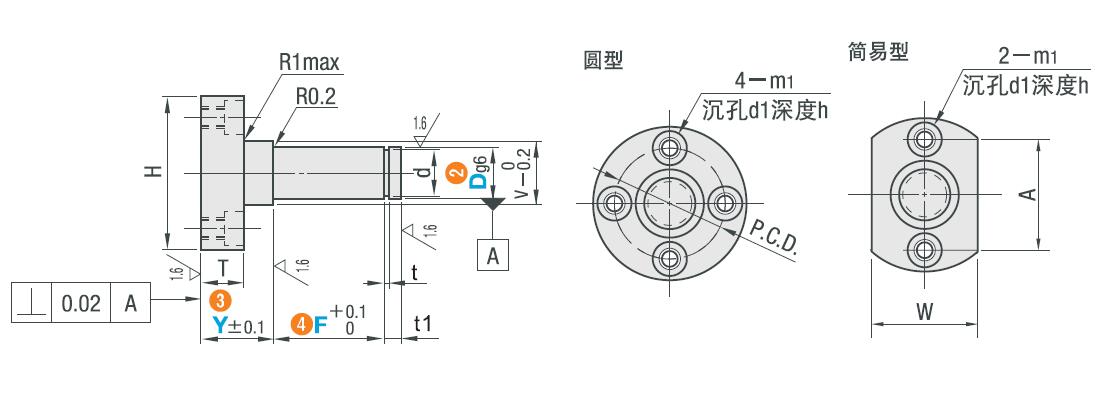

Index	Selector	D	Y	F	V	H	T	m1	d1	h	P.C.D.	d	m	n	W	A
1	4	6	12～60	5～100	8	26	10	M4	6.5	3.5	17	5	0.7	2	14	17
2	5	8	12～60	5～100	10	28	10	M4	6.5	3.5	19	7	0.9	3	15	19
3	6	10	12～60	5～100	13	32	10	M4	6.5	3.5	23	9.6	1.15	3	16	23
4	7	12	12～60	10～150	15	36	10	M5	8	4.4	26	11.5	1.15	4	20	26
5	8	15	12～60	10～150	18	40	10	M5	8	4.4	30	14.3	1.15	4	24	30
6	1	20	17～75	10～150	24	48	15	M6	9.5	5.4	36	19	1.35	4	32	36
7	2	25	17～75	10～150	29	54	15	M6	9.5	5.4	42	23.9	1.35	5	38	42
8	3	30	17～75	10～150	34	62	15	M8	11	6.5	49	28.6	1.65	5	42	49

Material and Treatment

Retaining Ring

Embedded Processing
