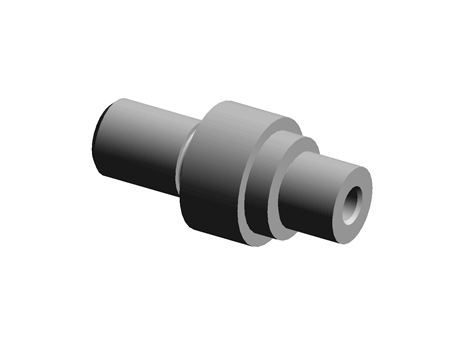

Cantilever Pin - External Thread Installation Internal Thread Type - Fixed Thread Length - Step Type - BDFBB/BDPFBB/BDSFBB

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Cantilever Pin - External Thread Installation Internal Thread Type - Fixed Thread Length - Step Type - BDFBB6-7-F5-MA3
Part number	BDFBB6-7-F5-MA3

CAD models

Product selection

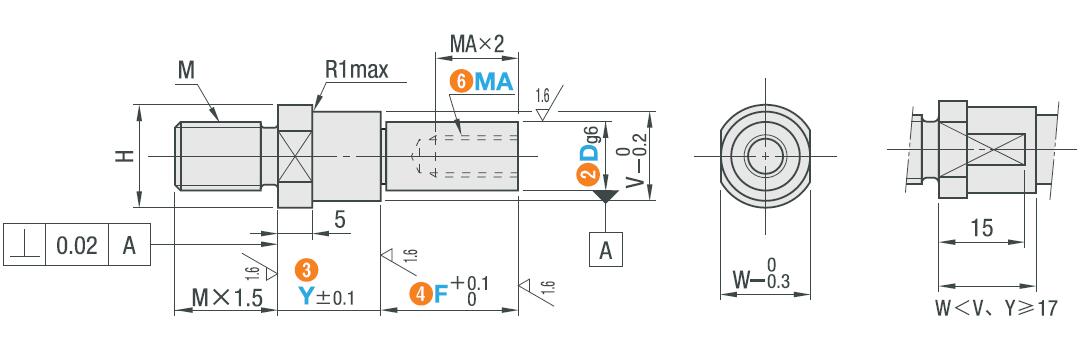

Index	Selector	D	Y	F	V	H	W	M
1	1	6	7～60	5～75	8	10	8	M6
2	2	8	7～60	5～75	10	12	10	M8
3	3	10	7～60	5～75	13	15	13	M10
4	4	12	7～60	10～75	15	17	14	M12
5	5	15	7～60	10～75	18	20	17	M12

Material and Treatment
