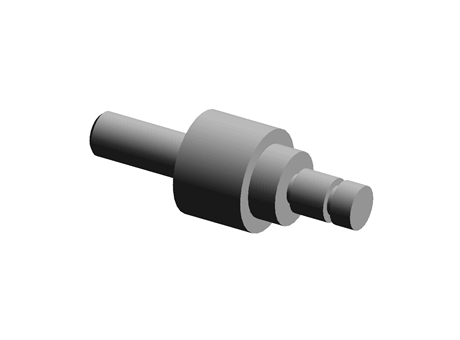

Cantilever Pin - Embedded External Thread Installation With Retaining Ring Groove Type - Fixed Thread Length - Step Type - BDFDA/BDPFDA/BDSFDA

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Cantilever Pin - Embedded External Thread Installation With Retaining Ring Groove Type - Fixed Thread Length - Step Type - BDFDA3-7-F3-G3
Part number	BDFDA3-7-F3-G3

CAD models

Product selection

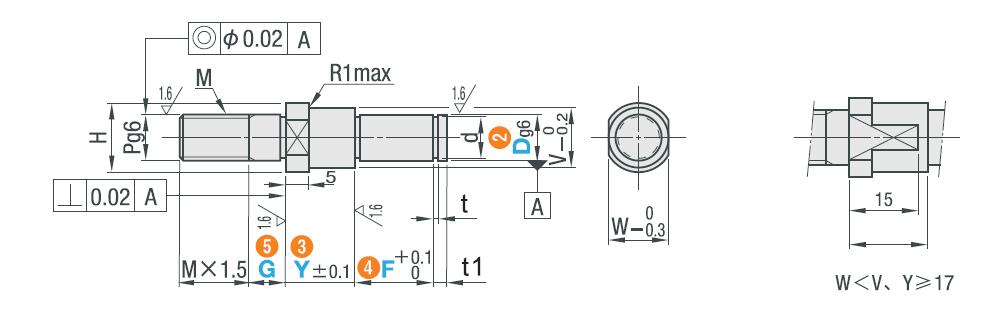

Index	Selector	D	Y	F	G	P	M	V	H	W	d	t	t1
1	1	3	7～30	3～50	3～8	3	M3	5	7	5	2	0.5	2
2	2	4	7～30	3～50	3～8	4	M4	6	8	6	3	0.7	2
3	3	5	7～30	3～50	3～8	5	M5	7	9	7	4	0.7	2
4	4	6	7～60	5～100	5～10	6	M6	8	10	8	5	0.7	2
5	5	8	7～60	5～100	5～10	8	M8	10	12	10	7	0.9	3
6	6	10	7～60	5～100	5～10	10	M10	13	15	13	9.6	1.15	3
7	7	12	7～60	10～100	5～15	12	M12	15	17	14	11.5	1.15	4
8	8	15	7～60	10～100	5～15	12	M12	18	20	17	14.3	1.15	4

Material and Treatment

Retaining Ring
