By Shenzhen Shiruida Automation Equipment Co.,Ltd.

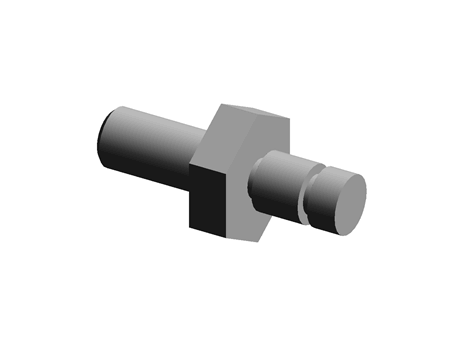

Cantilever Pin - Embedded External Thread Installation With Retaining Ring Groove Type - Designated Thread Length - Hexagon Type - BDLNCA/BDPLNCA/BDSLNCA

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Cantilever Pin - Embedded External Thread Installation With Retaining Ring Groove Type - Designated Thread Length - Hexagon Type - BDLNCA3-2-F3-G3-N3
Part number	BDLNCA3-2-F3-G3-N3

CAD models

Request for quotation

Product selection

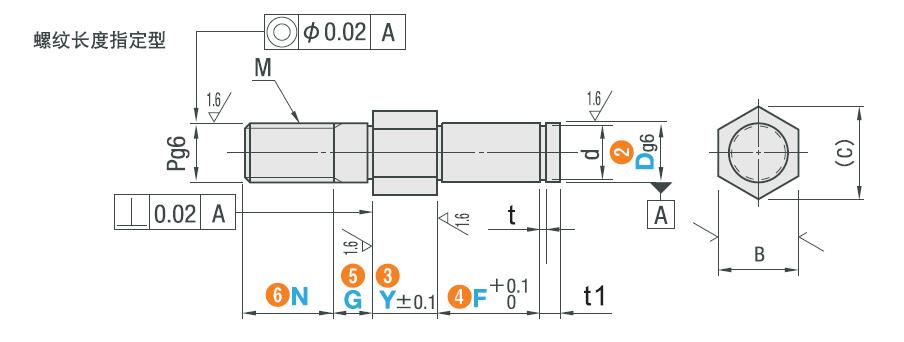

Index	Selector	D	Y	F	G	N	P	M	B	C	d	t	t1
1	1	3	2～30	3～50	3～8	3～6	3	M3	6	6.9	2	0.5	2
2	2	4	2～30	3～50	3～8	4～8	4	M4	6	6.9	3	0.7	2
3	3	5	2～30	3～50	3～8	5～10	5	M5	7	8.1	4	0.7	2
4	4	6	2～60	5～100	5～10	6～12	6	M6	8	9.2	5	0.7	2
5	5	8	2～60	5～100	5～10	8～16	8	M8	10	11.5	7	0.9	3
6	6	10	2～60	5～100	5～10	10～20	10	M10	13	15	9.6	1.15	3
7	7	12	2～60	10～100	5～15	12～24	12	M12	14	16.2	11.5	1.15	4
8	8	15	2～60	10～100	5～15	12～24	12	M12	17	19.6	14.3	1.15	4

Material and Treatment

Y

F

G

N

Retaining Ring

Documentation

Technical Documents
