Cantilever Pin - Bolt Installation Internal Thread Type - Step Type BDFJB/BDPFJB/BDSFJB

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Cantilever Pin - Bolt Installation Internal Thread Type - Step Type BDFJB6-7-F5-MA3
Part number	BDFJB6-7-F5-MA3

CAD models

Product selection

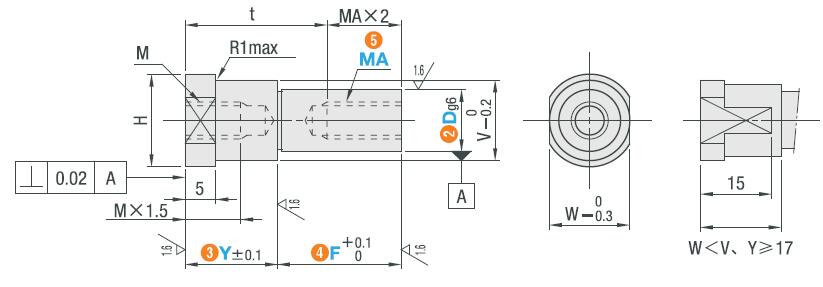

Index	Selector	D	Y	F	M	V	H	W
1	2	6	7～60	5～100	M3	8	10	8
2	3	8	7～60	5～100	M4	10	12	10
3	4	10	7～60	5～100	M6	13	15	13
4	5	12	7～60	10～100	M8	15	17	14
5	6	15	7～60	10～100	M10	18	20	17
6	1	20	7～60	10～100	M12	24	26	24

Material and Treatment

Embedded Processing
