By Shenzhen Shiruida Automation Equipment Co.,Ltd.

Bracket side mounting waist hole type for base HDCNB/HDCNM/HDCNA/HDCNS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Bracket side mounting waist hole type for base HDCNB20
Part number	HDCNB20

CAD models

Request for quotation

Product selection

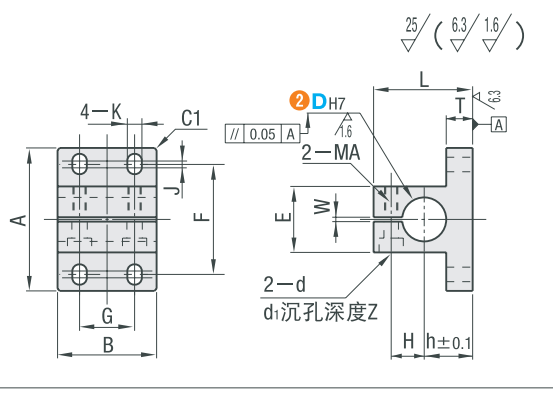

Index	Selector	DH7	A	B	L	T	F	G	K	J	H	h	E	d	d1	Z	MA	W	Accessory bolt
1	1	20	65	45	45	12	47.5	25	6.6	5.5	22	15	30	6.6	11	6.5	M6	2	M6-20 2个
2	2	25	80	60	53	12	57.5	36	9	7.5	27	18	35	6.6	11	6.5	M6	2	M6-25 2个
3	3	30	90	60	60	15	67.5	36	9	7.5	30	21	45	9	14	9	M8	2	M8-35 2个
4	4	35	105	80	68	15	77.5	40	11	9.5	35	24	50	9	14	9	M8	3	M8-40 2个
5	5	40	115	80	76	15	87.5	40	11	9.5	38	27	60	11	17.5	11	M10	3	M10-45 2个
6	6	50	135	100	87	18	102.5	50	14	12.5	43	33	70	11	17.5	11	M10	3	M10-50 2个

Code
