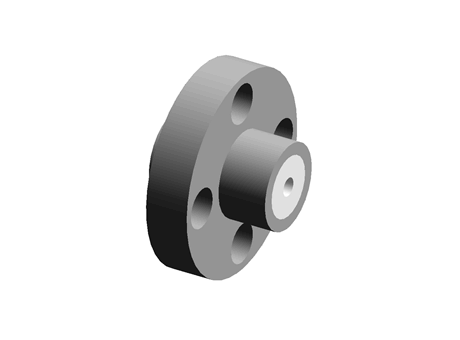

Bearing and Bearing Base Components-Bearing with Seat - Double Bearings without Retaining Ring Free Appointed Type Embedded Type-BBFFYB Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Bearing and Bearing Base Components-Bearing with Seat - Double Bearings without Retaining Ring Free Appointed Type Embedded Type BBFFYB623ZZ-20-S5
Part number	BBFFYB623ZZ-20-S5

CAD models

Request for quotation

Product selection

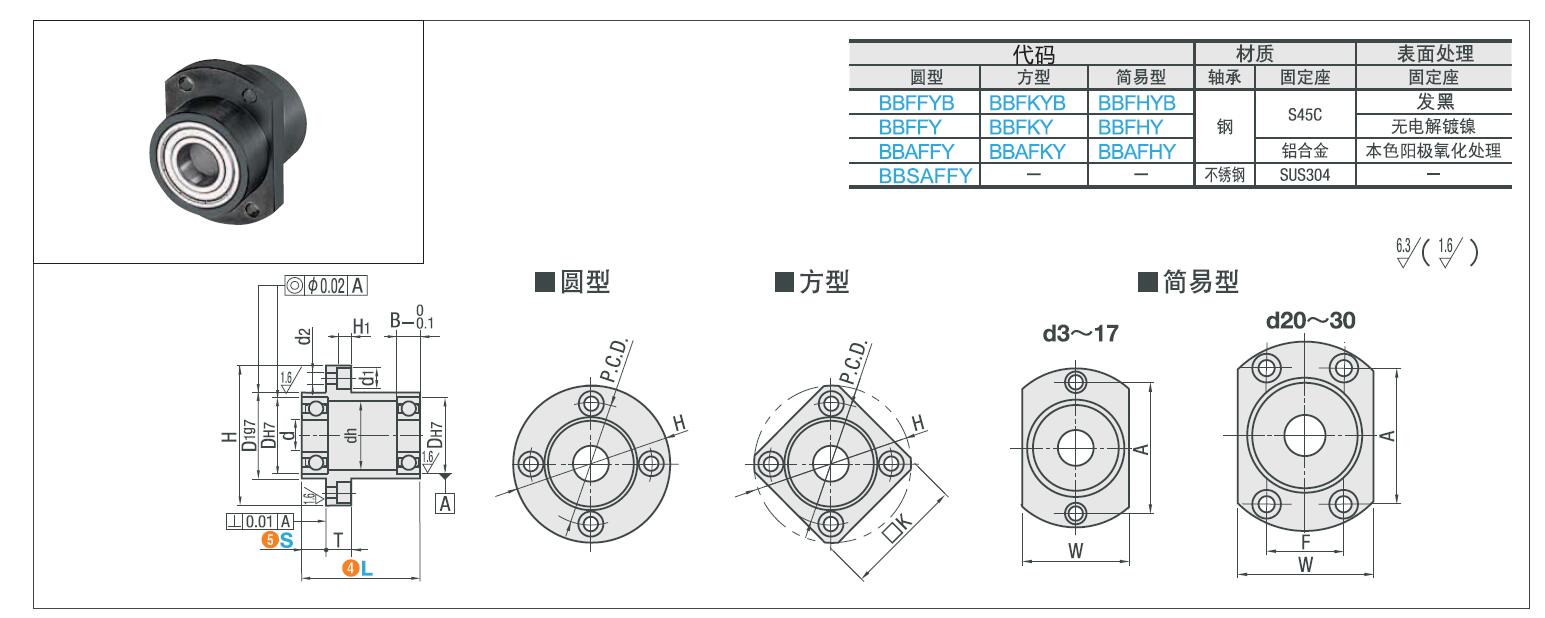

Index	Selector	Bearing Type	L	S	d	D-H7	B	H	W	T	dh	D1-g7	P.C.D.	K	A	F	d1	d2	H1
1	1	623	20～40	5～28	3	10	4	33	16	7	7	14	24	27	24	-	6.5	3.5	3.1
2	2	624	20～40	5～28	4	13	5	35	18	7	9	17	26	28	26	-	6.5	3.5	3.1
3	3	605	20～40	5～27	5	14	5	38	20	8	10	18	28	30	28	-	8	4.5	4.1
4	4	625	30～40	10～22	5	16	5	40	22	8	12	20	30	31	30	-	8	4.5	4.1
5	5	606	20～40	5～27	6	17	6	41	23	8	13	21	31	32	31	-	8	4.5	4.1
6	6	626	30～50	10～32	6	19	6	44	25	8	15	24	34	34	34	-	8	4.5	4.1
7	7	678	20～40	5～27	8	12	3.5	35	18	8	10	16	26	28	26	-	6.5	3.5	3.1
8	8	698	25～50	5～37	8	19	6	44	25	8	15	24	34	34	34	-	8	4.5	4.1
9	9	608	20～50	5～37	8	22	7	47	29	8	18	27	37	36	37	-	8	4.5	4.1
10	10	628	30～50	10～32	8	24	8	50	32	8	20	30	40	37	40	-	8	4.5	4.1
11	11	6700	20～40	5～27	10	15	4	40	22	8	12	19	30	31	30	-	8	4.5	4.1
12	12	6800	20～40	5～27	10	19	5	44	25	8	15	24	34	34	34	-	8	4.5	4.1
13	13	6900	20～60	5～47	10	22	6	47	29	8	19	27	37	36	37	-	8	4.5	4.1
14	14	6000	30～60	10～42	10	26	8	52	34	8	22	32	42	39	42	-	8	4.5	4.1
15	15	6200	40～60	15～37	10	30	9	56	38	8	24	36	46	42	46	-	8	4.5	4.1
16	16	6701	20～40	5～27	12	18	4	44	25	8	15	23	34	34	34	-	8	4.5	4.1
17	17	6801	25～50	5～37	12	21	5	47	29	8	17	26	37	36	37	-	8	4.5	4.1
18	18	6901	30～60	10～42	12	24	6	50	31	8	21	30	40	38	40	-	8	4.5	4.1
19	19	6001	30～60	10～42	12	28	8	54	36	8	24	34	44	40	44	-	8	4.5	4.1
20	20	6201	40～70	15～47	12	32	10	58	40	8	26	38	48	43	48	-	8	4.5	4.1
21	21	6702	25～60	10～42	15	21	4	47	29	8	18	26	37	36	37	-	8	4.5	4.1
22	22	6802	25～60	10～42	15	24	5	50	32	8	20	30	40	37	40	-	8	4.5	4.1
23	23	6902	30～70	10～50	15	28	7	59	37	10	25	35	47	45	47	-	9.5	5.5	5.1
24	24	6002	40～70	15～45	15	32	9	62	40	10	28	38	50	46	50	-	9.5	5.5	5.1
25	25	6202	40～70	15～45	15	35	11	66	44	10	29	42	54	49	54	-	9.5	5.5	5.1
26	26	6803	25～60	10～40	17	26	5	52	34	10	22	32	42	39	42	-	8	4.5	4.1
27	27	6903	40～70	15～45	17	30	7	60	38	10	27	36	48	46	48	-	9.5	5.5	5.1
28	28	6003	40～70	15～45	17	35	10	66	44	10	31	42	54	50	54	-	9.5	5.5	5.1
29	29	6203	50～70	20～40	17	40	12	72	50	10	34	48	60	54	60	-	9.5	5.5	5.1
30	30	6704	30～70	10～50	20	27	4	59	35	10	23	33	47	45	41	23	8	4.5	4.1
31	31	6804	35～70	10～50	20	32	7	62	40	10	28	38	50	46	44	24	9.5	5.5	5.1
32	32	6904	45～70	15～44	20	37	9	72	47	11	34	45	59	54	54	24	11	6.6	6.1
33	33	6004	55～80	20～49	20	42	12	77	54	11	36	50	64	59	56	32	11	6.6	6.1
34	34	6204	55～80	20～49	20	47	14	81	58	11	40	54	68	62	59	34	11	6.6	6.1
35	35	6805	35～70	15～44	25	37	7	72	47	11	34	45	59	54	54	24	11	6.6	6.1
36	36	6905	35～70	15～44	25	42	9	77	54	11	36	50	64	59	55	32	11	6.6	6.1
37	37	6005	55～80	20～47	25	47	12	88	58	13	41	54	72	67	63	36	14	9	8.1
38	38	6205	55～80	20～47	25	52	15	94	64	13	45	60	78	72	68	39	14	9	8.1
39	39	6806	35～70	15～42	30	42	7	77	54	11	36	50	64	59	56	32	11	6.6	6.1
40	40	6906	35～70	15～42	30	47	9	88	58	13	41	54	72	67	62	36	14	9	8.1
41	41	6006	55～80	20～47	30	55	13	96	66	13	48	62	80	73	70	40	14	9	8.1
42	42	6206	55～120	20～87	30	62	16	104	74	13	55	70	88	79	77	44	14	9	8.1
43	43	6007	55～120	20～87	35	62	14	104	74	13	55	70	88	79	75	44	14	9	8.1
44	44	6207	55～120	20～87	35	72	17	126	88	20	64	84	105	95	92	51	17.5	11	11
45	45	6008	65～120	25～82	40	68	15	114	82	13	60	78	96	86	80	54	14	9	8.1
46	46	6208	65～120	25～82	40	80	18	134	96	20	74	92	113	102	98	56	17.5	11	11
47	47	6010	65～120	25～82	50	80	16	134	96	20	74	92	113	－	98	56	17.5	11	11
48	48	6210	70～120	25～82	50	90	20	147	110	20	83	106	126	－	104	72	17.5	11	11

Bearing Shape

Sealing Ring

Machining

Type

Documentation

Technical Documents
