Axis Diameter Tolerance Optional Hinge Pin - S Type(Fixed Type of Stop Screw) BDKL/BDKLH/BDPKL/BDPKLH/BDKLS/BDKLSH

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Axis Diameter Tolerance Optional Hinge Pin - S Type(Fixed Type of Stop Screw) BDKLSM3-5-F2-E1
Part number	BDKLSM3-5-F2-E1

CAD models

Product selection

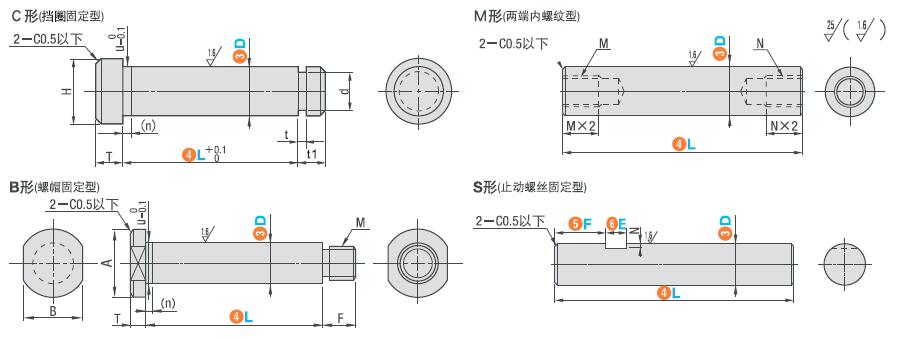

Index	Selector	D	L	E	N
1	1	3	5～50	1～50	0.5
2	2	4	5～50	1～50	0.5
3	3	5	10～60	1～50	0.5
4	4	6	10～100	1～50	1
5	5	8	10～100	1～50	1
6	6	10	15～100	1～50	1
7	7	12	15～100	1～50	1
8	8	15	25～100	1～50	1
9	9	20	30～100	1～50	2
10	10	25	30～100	1～50	2

Material and Treatment

Tolerance

Additional Thread Processing for Disassembly

Not Available
