Axis Diameter Tolerance Optional Hinge Pin - M Type(Internal Thread Type at Both Ends) BDKL/BDKLH/BDPKL/BDPKLH/BDKLS/BDKLSH

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Axis Diameter Tolerance Optional Hinge Pin - M Type(Internal Thread Type at Both Ends) BDKLBM6-20
Part number	BDKLBM6-20

CAD models

Product selection

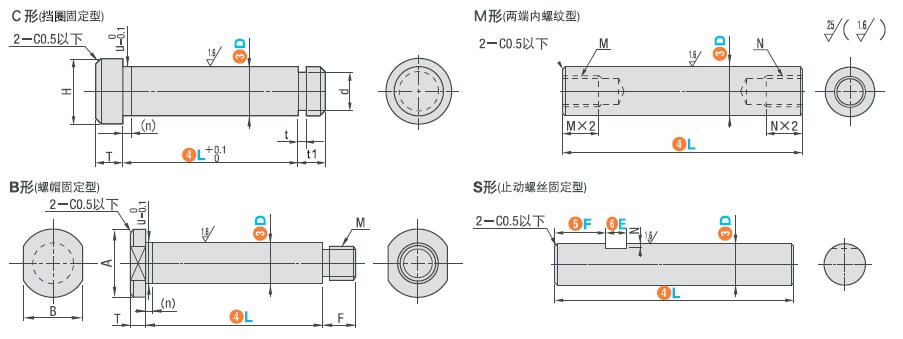

Index	Selector	D	L	M	N
1	1	6	20～100	M3	M3
2	2	8	20～100	M5	M5
3	3	10	25～100	M6	M6
4	4	12	25～150	M6	M6
5	5	15	35～150	M8	M8
6	6	16	40～150	M10	M10
7	7	20	50～150	M12	M12
8	8	25	50～150	M16	M16

Material and Treatment

Tolerance

MC Change Thread Diameter

Not Available

NC Change Thread Diameter

Not Available
