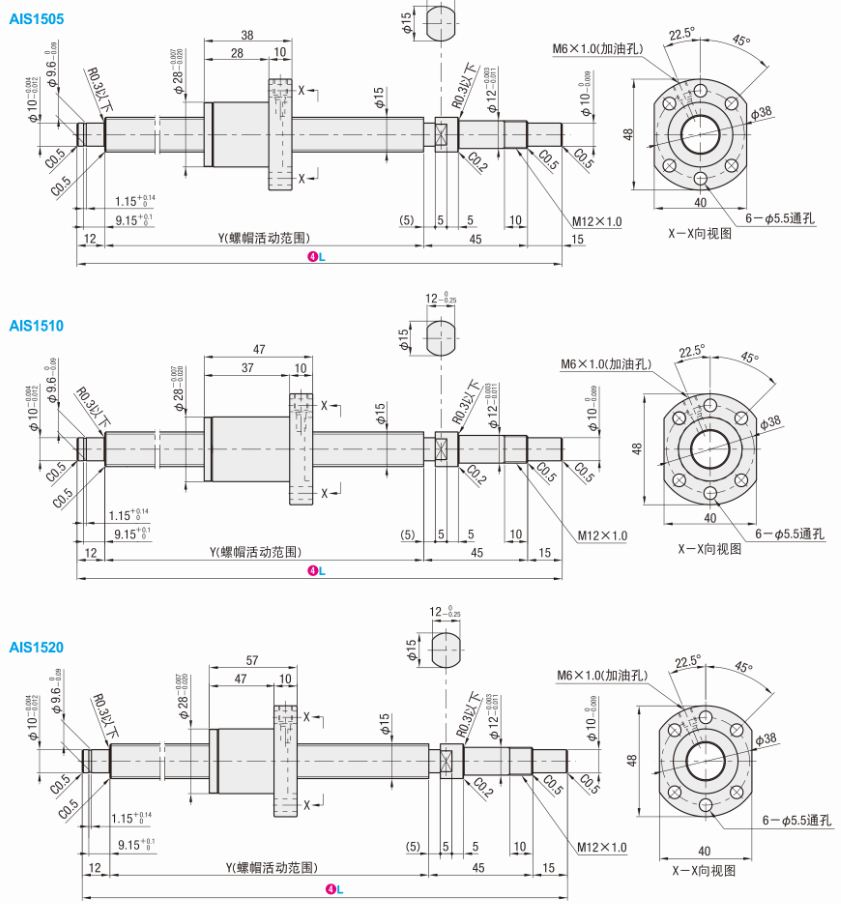

AIS Compact Rolled Ball Screw - Standard Nuts (Diameter15 Lead5.10.20)

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	AIS Compact Rolled Ball Screw - Standard Nuts (Diameter15 Lead5.10.20) AIS1505-150
Part number	AIS1505-150

CAD models

Request for quotation

Product selection

Index	Selector	Level	Code	Diameter	Lead	L	Y	D1	D2	D3	Loop	FC	FCo	Clearance	N.CM
1	2	C5	AIS	15	5	150-1095	L-72	2.778	15.672	12.984	3.8/1	4.8	8.8	<0.015	<2
2	3	C5	AIS	15	10	200-1095	L-72	2.778	15.672	12.984	2.8/1	3.9	6.9	<0.015	<3
3	1	C5	AIS	15	20	230-1095	L-72	2.778	15.672	12.984	1.8/1	3.1	5.5	<0.015	<3

Support Side Shaft End

Change Nut Direction

Processing Fixed Side Shaft End Plane

Processing Of Fixed Side Shaft End Key Slots

Input FC value

Input SC/SWC/SGC value

Input KC value

Input K Value

Input S Value

Input G Value

Input MC Value
