AIP Compact Rolled Ball Screw - Standard Nuts (Diameter6.8 Lead1.2)

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

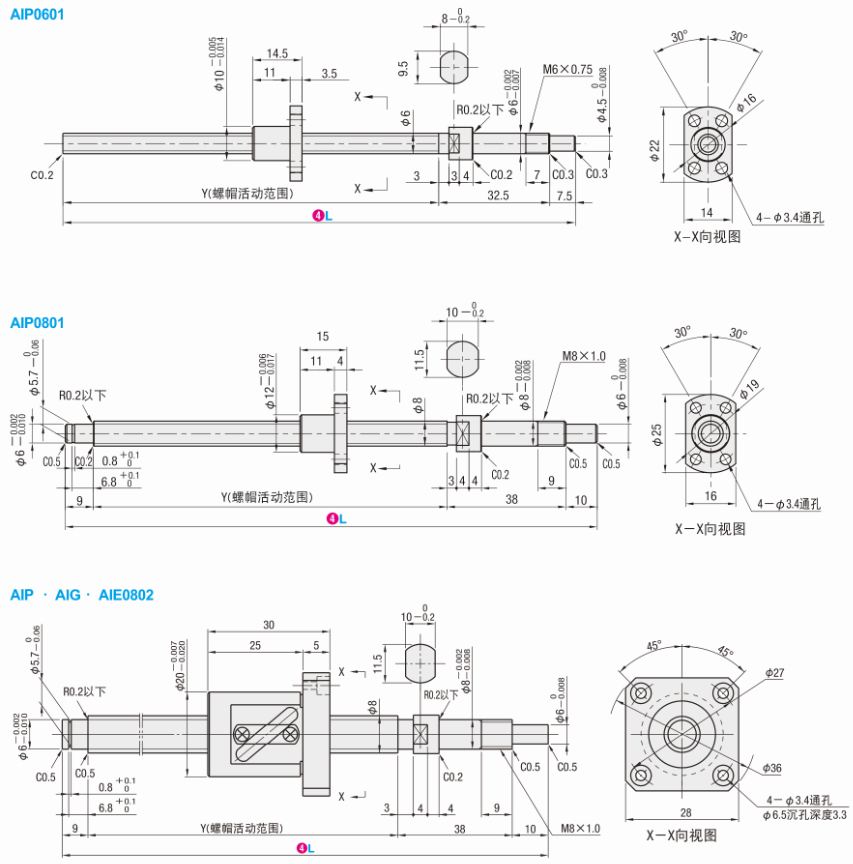

Description	AIP Compact Rolled Ball Screw - Standard Nuts (Diameter6.8 Lead1.2) AIP0601-80
Part number	AIP0601-80

CAD models

Product selection

Index	Selector	Level	Code	Diameter	Lead	L	Clearance	D1	D2	D3	FC	FCo	lmax	lmin	Loop	N.CM	Y
1	1	C3	AIP	6	1	80-205	0	0.8	6.24	5.3	0.55	1.15	205	80	1/3	<1.3	L-40
2	2	C3	AIP	8	1	80-255	0	0.8	8.24	7.3	0.65	1.6	255	80	1/3	<1.8	L-57
3	5	C3	AIP	8	2	100-240	0	1.5875	8.3	6.6	1.22	1.3	240	100	2.5/1	0.3-2.6	L-57
4	3	C5	AIG	8	2	100-210	<0.005	1.5875	8.3	6.6	1.95	2.6	210	100	2.5/1	<0.5	L-57
5	4	C7	AIE	8	2	100-210	<0.03	1.5875	8.3	6.6	1.95	2.6	210	100	2.5/1	-	L-57

Support Side Shaft End

None

Change Nut Direction

Normal

Processing Fixed Side Shaft End Plane

None

Processing Of Fixed Side Shaft End Key Slots

None

Input FC value

Input SWC value

Input KC value

Input K value

Input S value
