AIG Compact Rolled Ball Screw - Standard Nuts (Diameter20 Lead5.10.20)

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

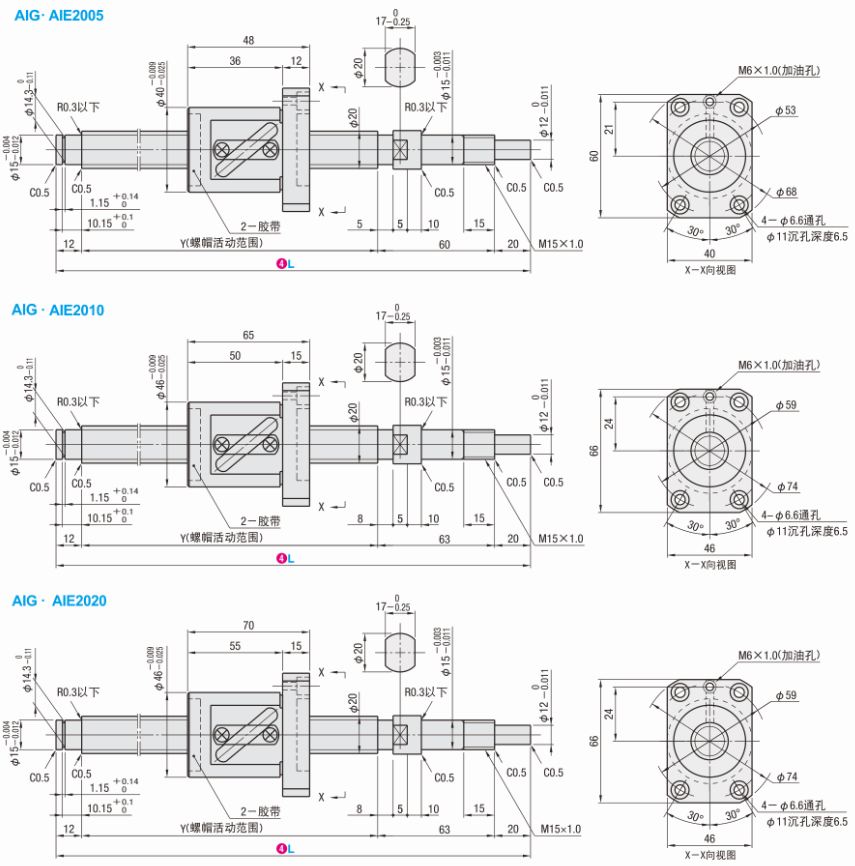

Description	AIG Compact Rolled Ball Screw - Standard Nuts (Diameter20 Lead5.10.20) AIG2005-200
Part number	AIG2005-200

CAD models

Product selection

Index	Selector	Level	Code	Diameter	Lead	L	Y	D1	D2	D3	Loop	FC	FCo	Clearance	N.CM
1	5	C5	AIG	20	5	200-1000	L-92	3.175	20.8	17.5	2.5/1	8.35	17.5	<0.005	<3
2	6	C7	AIE	20	5	200-1000	L-92	3.175	20.8	17.5	2.5/1	8.35	17.5	<0.03	-
3	1	C5	AIG	20	10	250-1500	L-95	4.7625	21	16	2.5/1	13.5	25.1	<0.005	<4
4	2	C7	AIE	20	10	250-1500	L-95	4.7625	21	16	2.5/1	13.5	25.1	<0.03	-
5	3	C5	AIG	20	20	250-1500	L-95	4.7625	21	15.9	1.5/1	9.2	16.2	<0.005	<4
6	4	C7	AIE	20	20	250-1500	L-95	4.7625	21	15.9	1.5/1	9.2	16.2	<0.03	-
