By Shenzhen Shiruida Automation Equipment Co.,Ltd.

AHSY27 - Telescopic Slide Rails - Light Load

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Telescopic Slide Rail - AHSY2708, position : In
Part number	AHSY2708
Material	SUS304
Surface Treatment	Not Provided

CAD models

Request for quotation

Product selection

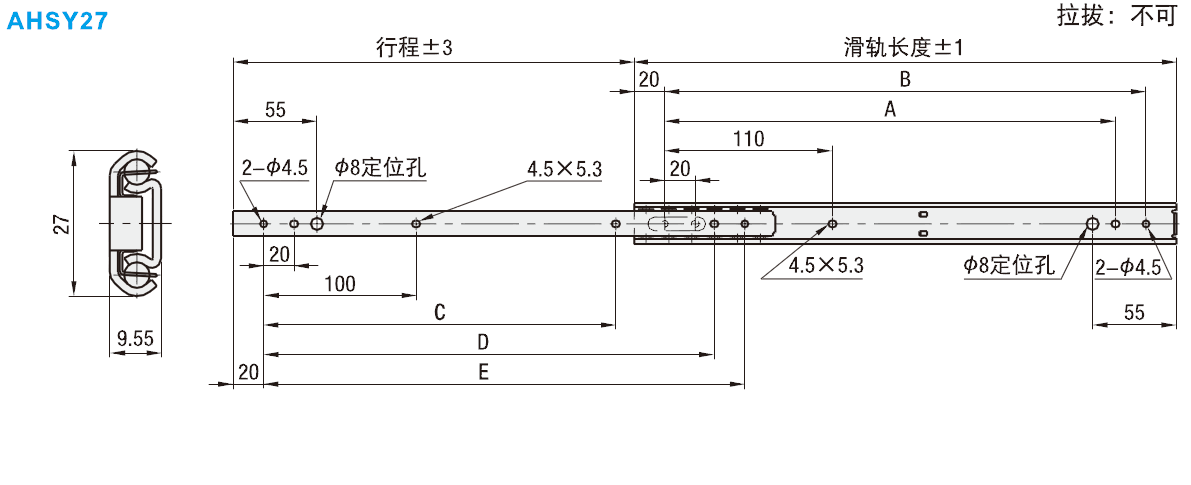

Index	Selector	Part Number	Rail Length (mm)	Stroke (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Load Rating (N/2 pcs.)
1	5	AHSY2708	203.2	136.1	143.2	163.2	-	143.2	163.2	255
2	6	AHSY2710	254	186.9	194	214	154	194	214	235
3	7	AHSY2712	304.8	225	244.8	264.8	194,8	244.8	264.8	235
4	13	AHSY2714	355.6	263.1	295.6	315.6	230,6	295.6	315.6	225
5	14	AHSY2716	406.4	301.2	346.4	366.4	271,4	346.4	366.4	206
6	15	AHSY2718	457.2	339.3	397.2	417.2	307,2	397.2	417.2	196
7	16	AHSY2720	508	377.4	448	468	345	448	468	176

Position

Documentation

Technical document
