TraceParts Classification › Sensors and measurement systems › Measurement systems › Thermometers
Senmatic A/S
By Senmatic A/S

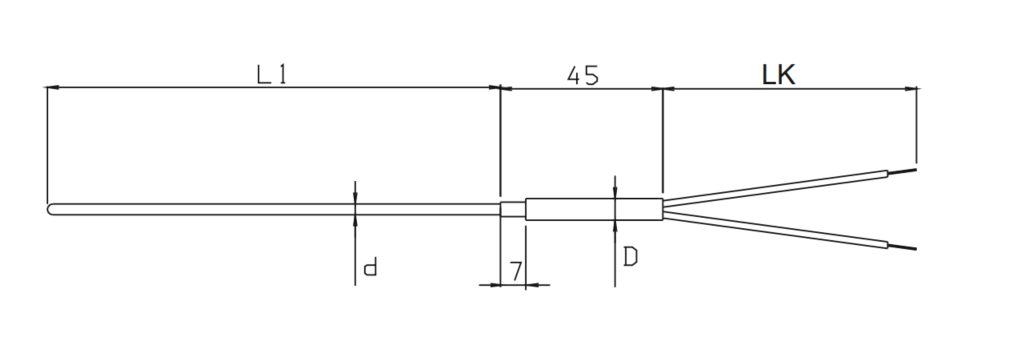

Type ML - Mineral insulated with tails

Manufacturer Senmatic A/S
Description Type ML - mineral insulated with tails, Length 40 mm, Sheathdia./d-Neckdia. 1.0 × 8 mm, Wire length 50 mm, Number of thermocouples 1xTC - 401150111(V2.2)
Part number 401150111(V2.2)
Length 40 mm
Sheathdia./d-Neckdia. 1.0 × 8
Jacket material AISI 316
Working temperature K - NiCr-Ni -40 / +1000°C
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

Series
Type ML
Imm. length/L1/mm (mm)
Sheathdia./d-Neckdia./D/mm
Jacket material
Wire/LK - mm (mm)
Number of thermocouples
1xTC
Thermoelement - Type/working temperature
Tolerance class

Documentation

Datasheet
