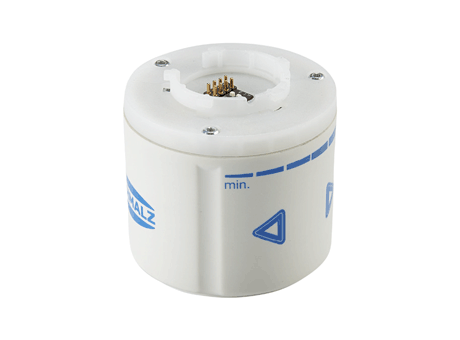

Vacuum Generators ECBPMi (Mini)

CAD models

Product selection

Index	Selector	Type	Diameter d (mm)	Diameter D (mm)	Diameter D2 (mm)	Diameter D mK1 (mm)	Diameter D mK2 (mm)	Thread Diameter G1 (mm)	Thread Diameter G2	Thread Diameter G4 (mm)	Length L (mm)	Length L1 (mm)	Length LG1 (mm)	Length LG2 (mm)	Length Lk (mm)

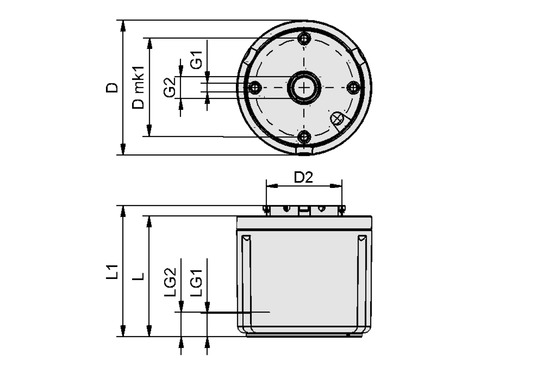

1	1	ECBPMi 24V-DC FK UNI	-	63	35.5	46	-	M4-IG	G1/4-IG	-	56.4	61.4	6	11	-

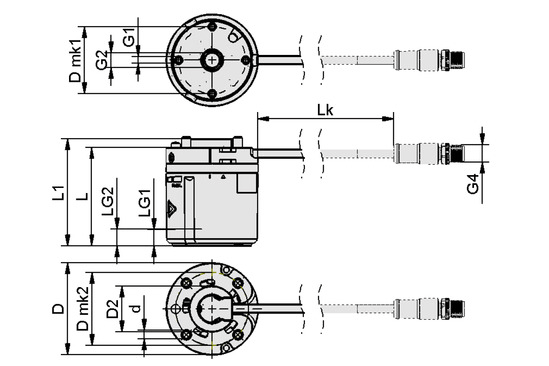

2	2	ECBPMi 24V-DC M12-8	7	63	31.5	46	50	M4-IG	G1/4-IG	M12-AG	67.4	73.4	6	11	500
3	3	ECBPMi-RS-485 24V-DC FK	-	63	35.5	46	-	M4-IG	G1/4-IG	-	56.4	61.4	6	11	-
