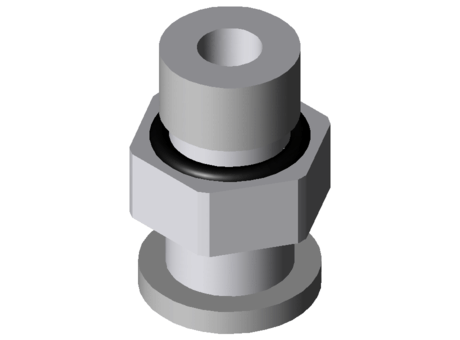

Suction Cup Connection Nipples for SPOB1f

CAD models

Request for quotation

Product selection

Index	Selector	Type	Nipple family	Diameter dn [mm]	Diameter D [mm]	Diameter D2 [mm]	Connecting thread G1	Length L [mm]	Length L1 [mm]	Length L2 [mm]	Length L3 [mm]	Length LG1 [mm]	Width across flats SW1 [mm]	Width across flats SW2 [mm]	Width across flats SW3 [mm]
1	1	SC 050-AR G1/4-AG	050	6.1	17	12	G1/4''-AG	7.2	26.5	6.8	2.5	10	17	6	6
2	2	SC 050-AR G1/4-IG	050	6.1	17	12	G1/4''-IG	17.2	26.5	6.8	2.5	12	17	-	6
