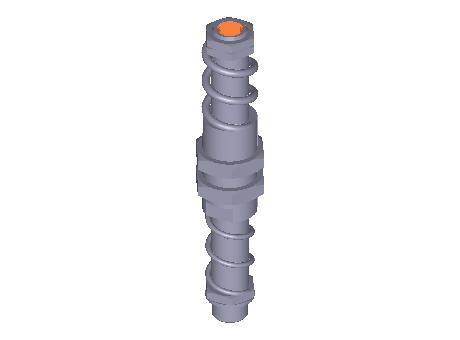

Spring plunger FSTA-HD

CAD models

Product selection

Type

Plunger stroke H [mm]

Index	Selector	Height C [mm]	Thread diameter G	Thread diameter G1	Thread diameter G2	Height L [mm]	Height L1 [mm]	Height L2 [mm]	Height L3 [mm]	Width across flats SW [mm]	Width across flats SW1 [mm]	Width across flats SW2 [mm]	Width across flats SW3 [mm]	Height BH [mm]
1	1	8.5	M20 x 1.5	G 1/8-IG	G 1/4-AG	124.5	38	40	30	24	17	17	17	116
