PXT Flange set robots

CAD models

Product selection

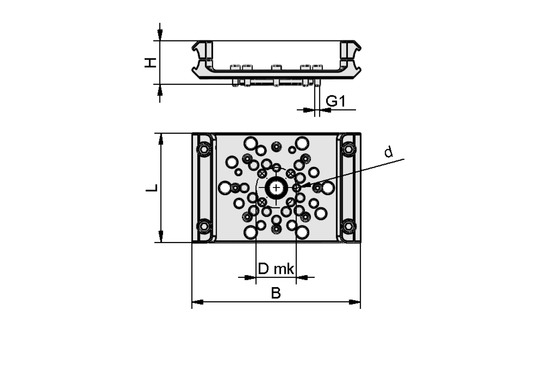

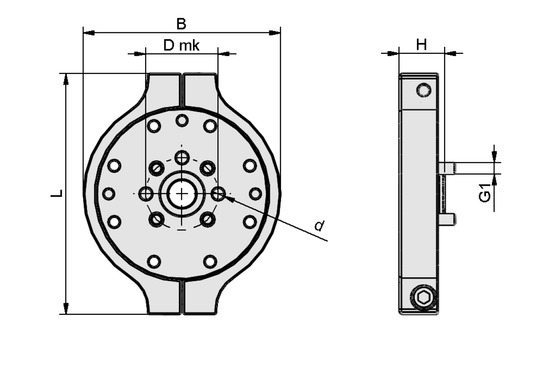

Index	Selector	Type	B (mm)	d (mm)	D mk (mm)	G1 (mm)	H (mm)	L (mm)
1	1	SET PXT 31.5 1LT FANUC	86	5.1	31.5	M5-AG	20	105
2	2	SET PXT 64 1LT FANUC	86	4.1	64	M4-AG	22	105
3	3	SET PXT 50 1LT UR	86	6.1	50	M6-AG	17	105
4	4	SET PXT 63 1LT YASKAWA	86	6.1	63	M6-AG	22.5	105
5	5	SET PXT 1LT UNI	86	-	-	-	17.5	105
6	6	SET PXT 31.5 2LT FANUC	131	5	31.5	M5-AG	29	85
7	7	SET PXT 40 2LT RETHINK	131	6	40	M6-AG	29	85
8	8	SET PXT 50 2LT UR	131	6	50	M6-AG	29	85
9	9	SET PXT 63 2LT YASKAWA	131	6	63	M6-AG	29	85
10	10	SET PXT 64 2LT FANUC	131	4	64	M4-AG	34	85
11	11	SET PXT 80 2LT YASKAWA	131	8	80	M8-AG	34	85
