Flow sensor technology FS

CAD models

Product selection

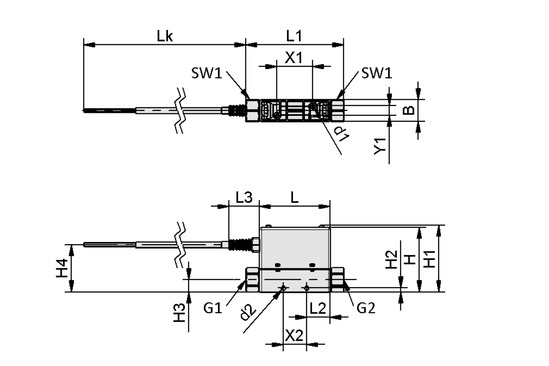

Index	Selector	ArtNo	Type	Width B (mm)	Diameter d (mm)	Diameter d1 (mm)	Diameter d2 (mm)	Thread Diameter G1	Thread Diameter G2	Heigth H (mm)	Heigth H1 (mm)	Heigth H2 (mm)	Heigth H3 (mm)	Heigth H4 (mm)	Length L (mm)	Length L1 (mm)	Length L2 (mm)	Length L3 (mm)	Length Lk (mm)	Tickness s (mm)	Width across flats SW1 (mm)	Length X1 (mm)	Length X2 (mm)	Length X3 (mm)	Length Y1 (mm)	Length Y2 (mm)
1	1	10.06.04.00001	FS-5 D 2NA K	17	-	2.5	3.4	G1/8-IG	G1/8-IG	50	52	3	9.5	36.7	55	76.2	18.5	24	2000	-	17	28	18	-	8	-
2	2	10.06.04.00002	FS-5 D 2PA K	17	-	2.5	3.4	G1/8-IG	G1/8-IG	50	52	3	9.5	36.7	55	76.2	18.5	24	2000	-	17	28	18	-	8	-
3	3	10.06.04.00003	FS-10 D 2NA K	17	-	2.5	3.4	G1/8-IG	G1/8-IG	50	52	3	9.5	36.7	55	76.2	18.5	24	2000	-	17	28	18	-	8	-
4	4	10.06.04.00004	FS-10 D 2PA K	17	-	2.5	3.4	G1/8-IG	G1/8-IG	50	52	3	9.5	36.7	55	76.2	18.5	24	2000	-	17	28	18	-	8	-
5	33	10.06.04.00005	FS-50 D 2NA K	17	-	2.5	3.4	G1/8-IG	G1/8-IG	50	52	3	9.5	36.7	55	76.2	18.5	24	2000	-	17	28	18	-	8	-
6	34	10.06.04.00006	FS-50 D 2PA K	17	-	2.5	3.4	G1/8-IG	G1/8-IG	50	52	3	9.5	36.7	55	76.2	18.5	24	2000	-	17	28	18	-	8	-
7	35	10.06.04.00007	FS-100 D 2NA K	17	-	2.5	3.4	G1/4-IG	G1/4-IG	50	52	3	9.5	36.7	55	84.2	18.5	24	2000	-	17	28	18	-	8	-
8	36	10.06.04.00008	FS-100 D 2PA K	17	-	2.5	3.4	G1/4-IG	G1/4-IG	50	52	3	9.5	36.7	55	84.2	18.5	24	2000	-	17	28	18	-	8	-
9	37	10.06.04.00009	FS-200 D 2NA K	17	-	2.5	3.4	G1/4-IG	G1/4-IG	50	52	3	9.5	36.7	55	84.2	18.5	24	2000	-	17	28	18	-	8	-
10	38	10.06.04.00010	FS-200 D 2PA K	17	-	2.5	3.4	G1/4-IG	G1/4-IG	50	52	3	9.5	36.7	55	84.2	18.5	24	2000	-	17	28	18	-	8	-

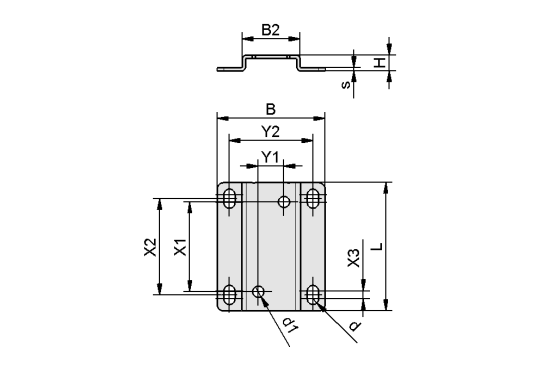

11	39	10.06.04.00011	BEF-WIN 33.6x5x40 1	33.6	3.5	3.5	-	-	-	5	-	-	-	-	40	-	18	-	-	1	-	28	30	2.5	8	26
