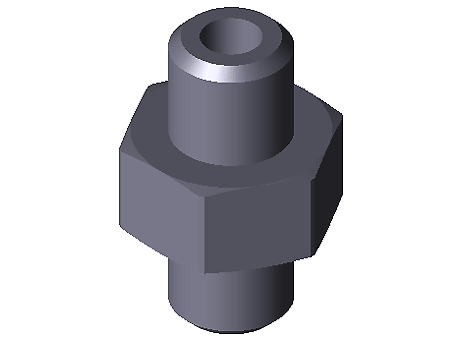

Double nipple with hexagon



Manufacturer	SCHMALZ
Description	Double nipple with hexagon
Part number	10.08.05.00131
Selection	DOP-NIP-S M5-AGx4

CAD models

Request for quotation

Product selection

Index	Selector	Type	Diameter dn [mm]	Connecting thread G1	Length L [mm]	Height LG1 [mm]	Height SW1 [mm]
1	1	DOP-NIP-S M5-AGx4	2.5	M5-AG	4	4.5	8
2	2	DOP-NIP-S G1/8-AGx5	4.5	G1/8''-AG	5	6.5	14
3	3	DOP-NIP-S G1/4-AGx5	7.5	G1/4''-AG	5	10	17
4	4	DOP-NIP-S G3/8-AGx6	11	G3/8''-AG	5	9	19
5	5	DOP-NIP-S G1/2-AGx6	12	G1/2''-AG	6	12	24
6	6	DOP-NIP-S G3/4-AGx8	15	G3/4''-AG	8	14	32
7	7	DOP-NIP-S G1-AGx10	20	G1''-AG	10	16	41
