Bellow Suction Pads FGB (3.5 Folds) - Spare Parts for FSGB

CAD models

Product selection

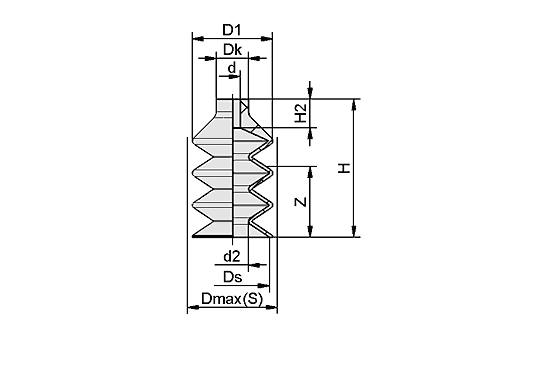

Index	Selector	Type	Diameter d [mm]	Diameter d2 [mm]	Diameter D1 [mm]	Diameter Dk [mm]	Diameter Dmax(S) [mm]	Diameter Ds [mm]	Height H [mm]	Height H2 [mm]	Stroke Z [mm]
1	3	FGB 12 SI-55 N016	4.5	5	12	10	13	11.9	24.5	6.5	11
2	1	FGB 25 SI-55 N049	5	10	25	10	26.5	23	43	9	22
3	2	FGB 25 NBR-55 N049	5	10	25	10	26.5	23	43	9	22
