Bellow suction cup FSDC (without Connector)

CAD models

Product selection

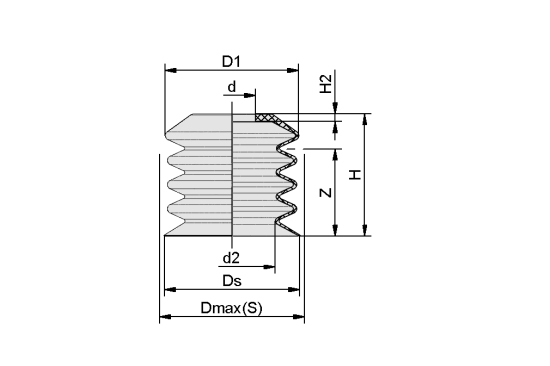

Index	Selector	Type	d (mm)	d2 (mm)	D1 (mm)	Dmax(S) (mm)	Ds (mm)	H (mm)	H2 (mm)	Z (mm)
1	1	FSDC 40 SI-MD-55 N059	14.5	26.9	41.5	45	42	38	2.4	27
2	2	FSDC 40 SI-65 N059	14.5	26.9	41.5	45	42	38	2.4	27
