Bellow suction cup FSDC (with Connector)

CAD models

Product selection

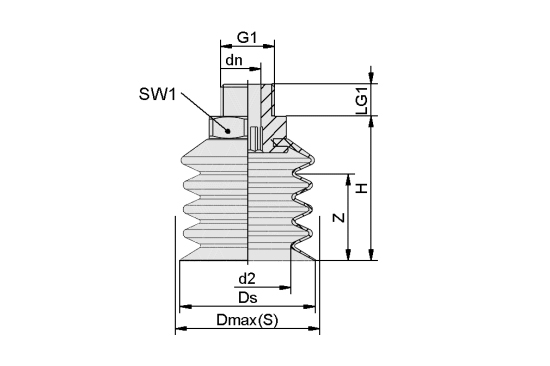

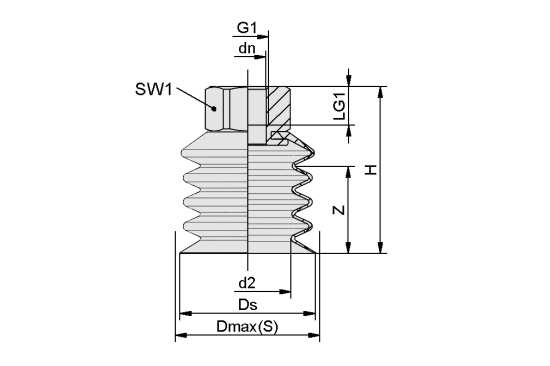

Index	Selector	Type	d2 (mm)	dn (mm)	Dmax(S) (mm)	Ds (mm)	G1	H (mm)	LG1 (mm)	SW1 (mm)	Z (mm)
1	1	FSDC 40 SI-65 G1/4-IG	26.9	11.4	45	42	G1/4-IG	52	12	24	27
2	2	FSDC 40 SI-65 G3/8-AG	26.9	8.2	45	42	G3/8-AG	45	10	24	27
3	3	FSDC 40 SI-MD-55 G1/4-IG	26.9	11.4	45	42	G1/4-IG	52	12	24	27
4	4	FSDC 40 SI-MD-55 G3/8-AG	26.9	8.2	45	42	G3/8-AG	45	10	24	27
