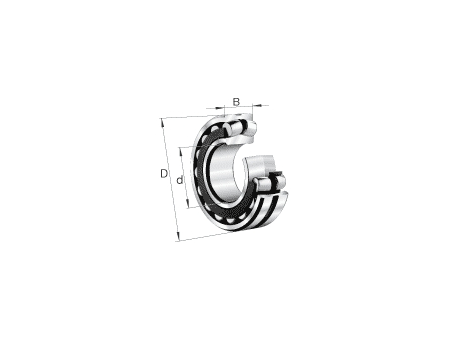

Spherical roller bearings 241..-K30 + AH, main dimensions to DIN 635-2, with tapered bore and withdrawal sleeve

Manufacturer	Schaeffler Technologies AG & Co. KG
Description	Spherical roller bearings
Part number	24140-B-K30 + AH24140
Selection	24140-B-K30 + AH24140

CAD models

Product selection

Index	Selector	Product	Description
1	1	24140-B-K30 + AH24140	Spherical roller bearings
2	2	24144-B-K30 + AH24144	Spherical roller bearings
3	3	24148-B-K30 + AH24148	Spherical roller bearings
4	4	24152-B-K30 + AH24152	Spherical roller bearings
5	5	24156-B-K30 + AH24156	Spherical roller bearings
6	6	24160-B-K30 + AH24160	Spherical roller bearings
7	7	24164-B-K30 + AH24164	Spherical roller bearings
8	8	24168-B-K30 + AH24168	Spherical roller bearings
9	9	24172-B-K30 + AH24172	Spherical roller bearings
10	10	24176-B-K30 + AH24176	Spherical roller bearings
11	11	24180-B-K30 + AH24180	Spherical roller bearings
12	12	24184-B-K30 + AH24184	Spherical roller bearings
13	13	24188-B-K30 + AH24188	Spherical roller bearings
14	14	24192-B-K30-MB + AH24192	Spherical roller bearings
15	15	24196-B-K30-MB + AH24196	Spherical roller bearings
16	16	241/500-B-K30-MB + AH241/500	Spherical roller bearings
17	17	241/530-B-K30-MB + AH241/530	Spherical roller bearings
18	18	241/560-B-K30-MB + AH241/560	Spherical roller bearings
19	19	241/600-B-K30-MB + AH241/600-H	Spherical roller bearings
20	20	241/630-B-K30-MB + AH241/630-H	Spherical roller bearings
21	21	241/670-B-K30-MB + AH241/670-H	Spherical roller bearings
22	22	241/710-B-K30-MB + AH241/710-H	Spherical roller bearings
