By Schaeffler Technologies AG & Co. KG

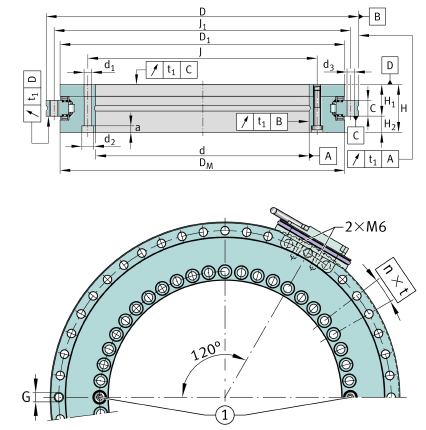

Axial/radial bearings YRTSMA double direction, screw mounting, with integrated angular measuring system

Manufacturer	Schaeffler Technologies AG & Co. KG
Description	Axial/radial bearings YRTSMA
Part number	YRTSMA200-03-0860
Mass	1.5 kg

CAD models

Request for quotation

Product selection

Index	Selector	Product	d (mm)	D (mm)	H (mm)	Cr (N)	C0r (N)	Ca (mm)	C0a (N)	Cur (N)	Cua (N)	nG (min-1)	Weight (kg)
1	1	YRTSMA200-03-0860	200	300	51	94000	226000	155000	840000	32000	92000	1160	1.5
2	2	YRTSMA260-03-1088	260	385	57.5	110000	305000	173000	1050000	40000	107000	910	18.709
3	3	YRTSMA325-03-1302	325	450	61	109000	320000	191000	1260000	43000	122000	760	25.203
4	4	YRTSMA395-03-1530	395	525	65	121000	390000	214000	1540000	49500	142000	650	32.7
5	5	YRTSMA460-03-1760	460	600	70	168000	570000	221000	1690000	65000	148000	560	45.1

Documentation

YRTSMA200-03-0860

YRTSMA260-03-1088

YRTSMA325-03-1302

YRTSMA395-03-1530

YRTSMA460-03-1760
