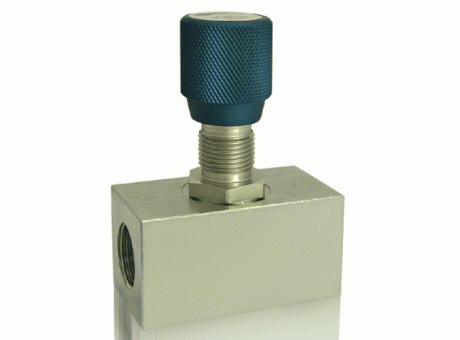

Valves Needle valve · DN 4 - DN 50 pagr 132

Manufacturer	RÖTELMANN
Description	Valves Needle valve · DN 4 - DN 50
Part number	219 001 DN = 4

CAD models

Request for quotation

Product selection

Level of detail

Type of connection

Material

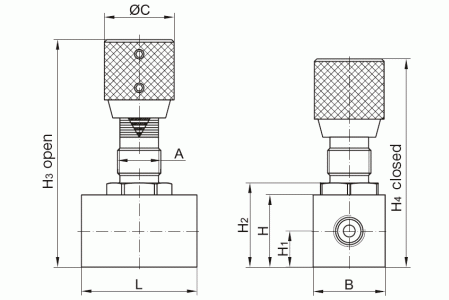

Index	Selector	Type of connection	DN	Thread D	L (mm)	L1 (mm)	A	B (mm)	Ø C (mm)	H (mm)	H1 (mm)	H2 (mm)	H3 (mm)	H4 (mm)	Weight (kg)	Article-No.
1	1	BSP-female thread DIN EN ISO 228-1	4	G 1/8	38	10	M18x1,5	20	29	20	10	23	87	78	0.23	219 001
2	2	BSP-female thread DIN EN ISO 228-1	6	G 1/4	48	12	M18x1,5	25	29	25	12.5	28	92	83	0.33	219 002
3	3	BSP-female thread DIN EN ISO 228-1	10	G 3/8	58	14	M18x1,5	30	29	30	15	35	95	86	0.56	219 003
4	4	BSP-female thread DIN EN ISO 228-1	12	G 1/2	68	15	M18x1,5	35	29	35	17.5	40	100	91.5	0.68	219 004
5	5	BSP-female thread DIN EN ISO 228-1	16	G 5/8	78	16	M22x1,5	45	38	45	22.5	52	122	114	1.3	219 055
6	6	BSP-female thread DIN EN ISO 228-1	20	G 3/4	78	16	M22x1,5	45	38	45	22.5	52	122	114	1.3	219 005
7	7	BSP-female thread DIN EN ISO 228-1	25	G1	108	20	M36x1,5	50	50	50	25	60	173	158.5	2.55	219 006
8	8	BSP-female thread DIN EN ISO 228-1	32	G1 1/4	108	20	M36x1,5	60	50	60	30	70	183	168.5	3.26	219 007
9	9	BSP-female thread DIN EN ISO 228-1	40	G1 1/2	108	23	M36x1,5	70	50	70	35	80	193	178.5	4.21	219 008
10	10	BSP-female thread DIN EN ISO 228-1	50	G2	130	24.5	M36x1,5	90	50	90	45	100	213	198.5	7.6	219 009
