Multi-way ball valves with floating ball 3-way · Steel · SAE-flange connection · DN 20 - DN 32 page 78

Manufacturer	RÖTELMANN

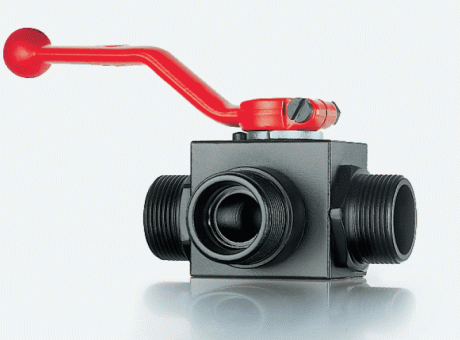

Description	Multi-way ball valves with floating ball 3-way · Steel · SAE-flange connection · DN 20 - DN 32
Part number	204 301 DN = 20

CAD models

Request for quotation

Product selection

Index	Selector	Bore	Cycling (°)	Body	Ball	Stem	Ball seats	Stem seals
1	1	L	90	Steel	Steel, hard chrome plated	Steel	POM	NBR
2	2	L	90	Steel	Steel, hard chrome plated	Steel	POM	FKM
3	3	T	90	Steel	Steel, hard chrome plated	Steel	POM	NBR
4	4	T	90	Steel	Steel, hard chrome plated	Steel	POM	FKM

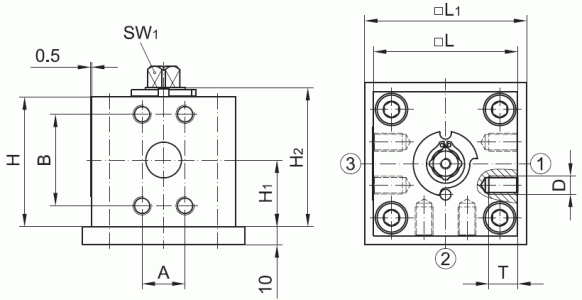

Index	Selector	Type of connection	DN	Flange size (inch)	D	T (mm)	A (mm)	B (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	H2 (mm)	SW1 (mm)	Weight (kg)	PN (bar)	Article-No.
1	1	ISO 6162-2	20	3/4	M10	21	23.8	50.8	80	90	72	37	77.5	14	4	400	204 301
2	2	ISO 6162-2	25	1	M12	23	27.8	57.2	90	100	80	40	85.5	14	5.5	400	204 302
3	3	ISO 6162-2	32	11/4	M12	24	31.8	66.6	100	110	100	50	106	17	8	400	204 303
4	4	ISO 6162-2	20	3/4	3/8 - 16 UNC	24	23.8	50.8	80	90	72	37	77.5	14	4	400	204 321
5	5	ISO 6162-2	25	1	7/16 - 14 UNC	27	27.8	57.2	90	100	80	40	85.5	14	5.5	400	204 322
6	6	ISO 6162-2	32	11/4	1/2 - 13 UNC	28	31.8	66.7	100	110	100	50	106	17	8	400	204 323
