Ball valves for measurement technology Directional ball valves for pressure transducers · Stainless steel page 127

Manufacturer	RÖTELMANN

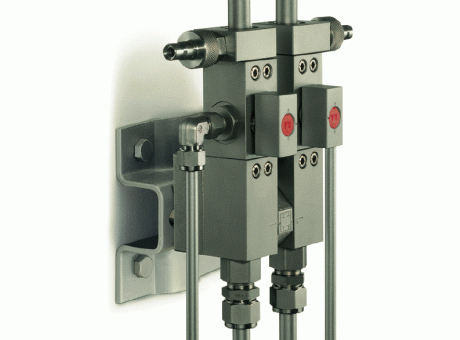

Description	Ball valves for measurement technology Directional ball valves for pressure transducers · Stainless steel
Part number	101 232 - Gewinde D = 3/4 - 20 UNEF

CAD models

Product selection

Level of detail

Type of connection

Execution

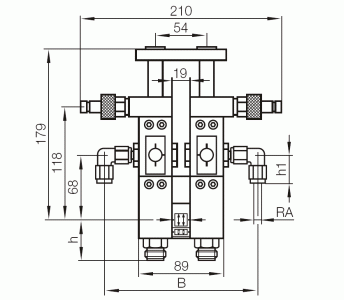

Index	Selector	Type of connection P1/P2	Thread D	RA P1/P2 (mm)	RA E1/E2 (mm)	L1 (mm)	h (mm)	h1 (mm)	B (mm)	PN (bar)	Article-No.
1	1	Swagelok pipe fitting	3/4 - 20 UNEF	12	8	12	58	29	161	100	101 232

Shut-off and Control Technology
