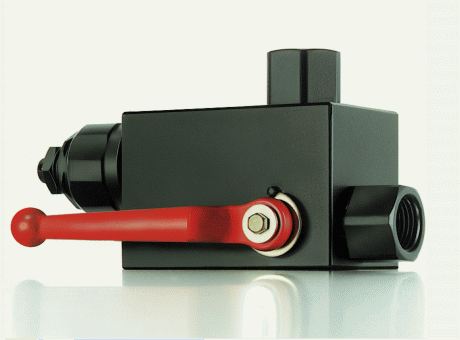

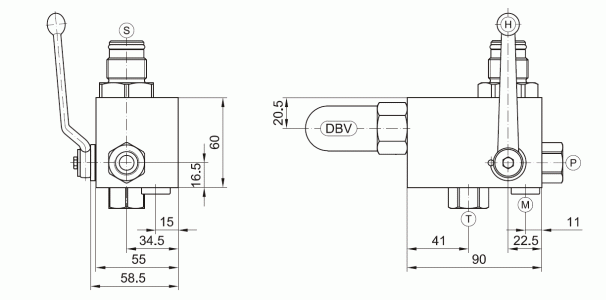

Ball valve-combinations Pressure accumulator safety blocks · with integrated 2-way ball valve type RSK NG 10 page 114

Manufacturer	RÖTELMANN
Description	Ball valve-combinations Pressure accumulator safety blocks · with integrated 2-way ball valve type RSK NG 10
Part number	RSK 10 A A S500 1 1 L T 500 M X 1

CAD models

Product selection

Connection thread pump (P)

Connection thread tank (T)

Index	Selector	D1 Connectionthread	Adapter fitting	K (SW) (mm)	L (mm)	L1 (mm)	D2 (mm)	O-Ring
1	1	G 3/4 A	S500	36	38	28		17 x 3
2	2	G 1 A	S501	41	44	34		22 x 3
3	3	G 1 1/4 A	S502	46	47	37		30 x 3
4	4	G 2 A	S503	65	54	44		48 x 3
5	5	M 30 x 1,5	S550	41	25	15	40	32 x 2
6	6	M 40 x 1,5	S551	55	30	20	54	43 x 3
7	7	M 50 x 1,5	S552	65	30	20	64	53 x 3

Sealing material (elastomer)

Ball-bore

Relief

Solenoid valve design

Solenoid valve voltage
