2-way ball valves with welding end Stainless Steel · with removable centre · DN 10 - DN 50 page 60

Manufacturer	RÖTELMANN
Description	2-way ball valves with welding end Stainless Steel · with removable centre · DN 10 - DN 50
Part number	109 363 DN = 50

CAD models

Request for quotation

Product selection

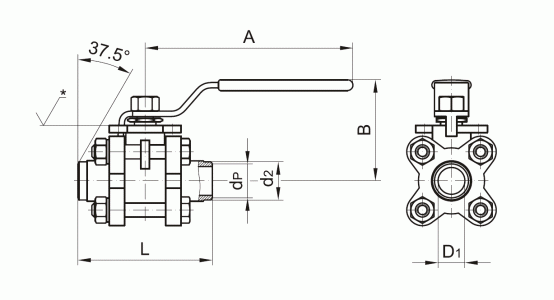

Index	Selector	PN (bar)	DN	D1 (mm)	d2 (mm)	dp (mm)	L (mm)	A (mm)	B (mm)	Porting pattern DIN EN ISO 5211	Weight (kg)	Article-No.	Body	Ball	Stem	Ball seats	Stem seals
1	1	40	50	49	60.3	56.5	150	191	104	F05	3.6	109 363	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
2	2	63	10	12.7	17.2	15	70	105	51	F04	0.45	109 357	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
3	3	63	15	15	21.3	19	75	105	61	F04	0.6	109 358	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
4	4	63	20	20	26.9	23	90	125	66	F04	0.65	109 359	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
5	5	63	25	25	33.7	30	100	152	78	F04	1.2	109 360	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
6	6	63	32	32	42.4	39	110	152	82	F04	1.75	109 361	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
7	7	63	40	38	48.3	45	125	191	95	F05	2.45	109 362	Stainless steel	Stainless steel	Stainless steel	PTFE	PTFE
