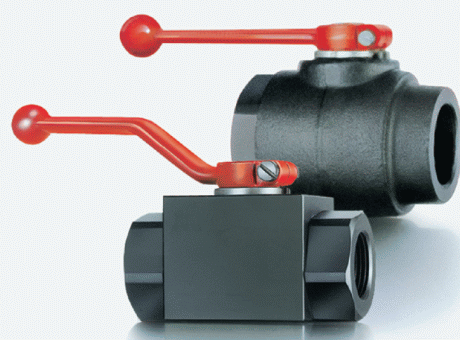

2-way ball valves with threaded connector Steel or Stainless Steel · as combination · DN 4 - DN 50 page 34

Manufacturer	RÖTELMANN
Description	2-way ball valves with threaded connector Steel or Stainless Steel · as combination · DN 4 - DN 50
Part number	100780, 100 001 DN = 4

CAD models

Request for quotation

Product selection

Type of connection

Index	Selector	Body	Ball	Stem	Ball seats	Stem seals
1	1	Steel	Steel, hard chrome plated	Steel	POM	NBR
2	2	Steel	Steel, hard chrome plated	Steel	POM	FKM
3	3	Steel	Steel, hard chrome plated	Steel	PTFE-Comp.3	FKM
4	4	Stainless steel	Stainless steel	Stainless steel	POM	NBR
5	5	Stainless steel	Stainless steel	Stainless steel	POM	FKM
6	6	Stainless steel	Stainless steel	Stainless steel	PTFE	FKM
7	7	Stainless steel	Stainless steel	Stainless steel	PTFE	FFKM

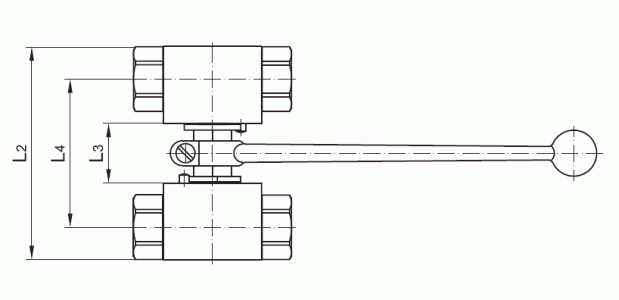

Index	Selector	Type of connection	DN	Thread D	L2 (mm)	L3 (mm)	L4 (mm)	Article-No.
1	1	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	4	M12 x 1,5	67	17	47	100780
2	2	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	6	M14 x 1,5	37	17	47	100780
3	3	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	8	M16 x 1,5	94	24	65	100781
4	4	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	10	M18 x 1,5	94	24	65	100781
5	5	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	12	M22 x 1,5	111	31	77	100782
6	6	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	16	M26 x 1,5	126	36	86	100783
7	7	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	20	M30 x 2	150	40	102	100784
8	8	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	25	M36 x 2	160	40	108	100784
9	88	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	32	M45 x 2	203	43	130	100785
10	89	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	40	M52 x 2	223	43	138	100785
