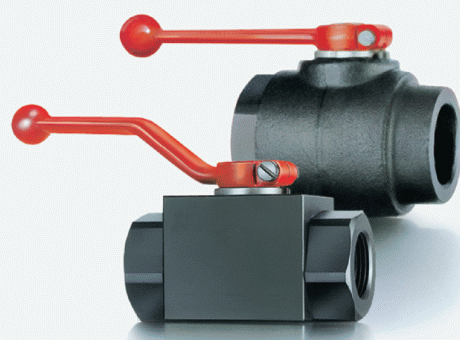

2-way ball valves with threaded connector Steel · DN 4 - DN 40/25 page 06

Manufacturer	RÖTELMANN
Description	2-way ball valves with threaded connector Steel · DN 4 - DN 40/25
Part number	100 001 DN = 4

CAD models

Request for quotation

Product selection

Type of connection

Index	Selector	Body	Ball	Stem	Ball seats	Stem seals
1	1	Steel	Steel, hard chrome plated	Steel	POM	NBR
2	2	Steel	Steel, hard chrome plated	Steel	POM	FKM
3	3	Steel	Steel, hard chrome plated	Steel	PTFE-Comp.3	FKM
4	4	Steel	Steel, hard chrome plated	Steel	Metallic	FKM

Accessories

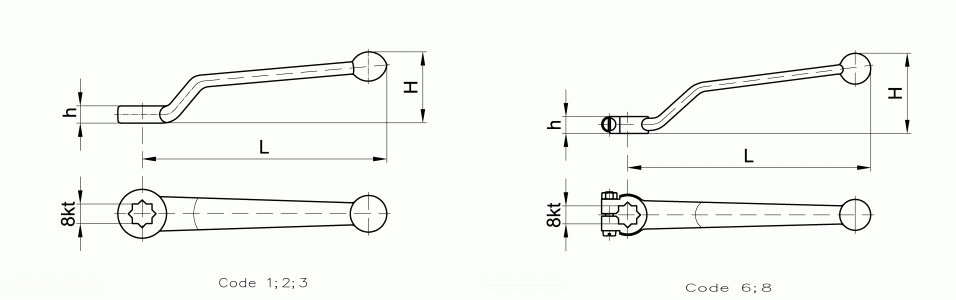

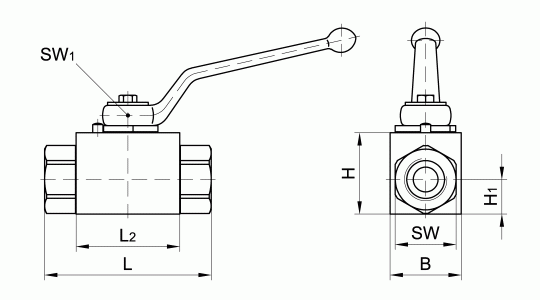

Index	Selector	Type of connection	DN	Thread D	RA (mm)	L (mm)	L1 (mm)	L2 (mm)	B (mm)	H (mm)	H1 (mm)	H2 (mm)	SW (mm)	SW1 (mm)	Handle code	Weight (kg)	PN (bar)	Article-No.	Handle 8kt (mm)	Handle L (mm)	Handle H (mm)	Handle h (mm)	Handle Article-No.	Accessories t (mm)	Accessories x (mm)	Accessories y (mm)	Accessories z (mm)	Accessories Article-No.
1	1	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	4	M12 x 1,5	6	67	10	36	20	25	10	27.5	19	7	1	0.2	500	100 001	7	76	27	6	903000	0.8	18	9	20	-
2	2	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	6	M14 x 1,5	8	67	10	36	20	25	10	27.5	19	7	1	0.2	500	100 002	7	76	27	6	903000	0.8	18	9	20	-
3	3	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	8	M16 x 1,5	10	75	11	45	30	35	14.5	38.5	24	8	2	0.42	500	100 003	8	100	29	7	903001	1.2	21	9	20	-
4	4	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	10	M18 x 1,5	12	75	11	45	30	35	14.5	38.5	24	8	2	0.42	500	100 004	8	100	29	7	903001	1.2	21	9	20	-
5	5	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	12	M22 x 1,5	15	83	12	51	35	40	17	43.5	30	10	3	0.63	500	100 005	10	112.5	48	10	903002	1.2	24	9	20	-
6	6	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	16	M26 x 1,5	18	82	12	50	45	45	20	49	36	11	6	0.85	400	100 006	11	166	56	12	903003	1.5	29	9	20	-
7	7	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	20	M30 x 2	22	99	14	60	45	55	24	59	41	14	8	1.21	400	100 007	14	187	62	13	903004	1.5	34	9	20	-
8	8	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	25	M36 x 2	28	108	14	70	55	60	26	64	50	14	8	1.75	400	100 008	14	187	62	13	903004	1.3	34	9	20	-
9	9	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	32/25	M45 x 2	35	116	16	70	55	60	26	64	50	14	8	1.88	400	100 037	14	187	62	13	903004	1.75	54	9	20	-
10	10	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	40/25	M52 x 2	42	121	16	70	55	60	26	64	55	14	8	2.05	400	100 038	14	187	62	13	903004	1.75	54	9	20	-
