2-way ball valves with threaded connector Steel · DN 4 - DN 25 page 08

Manufacturer	RÖTELMANN

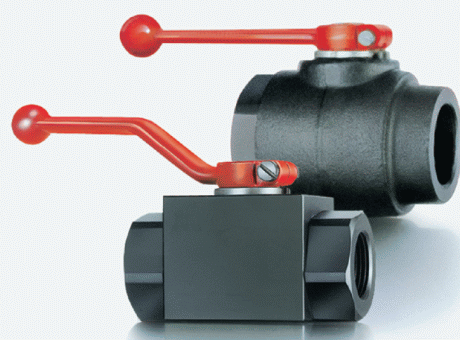

Description	2-way ball valves with threaded connector Steel · DN 4 - DN 25
Part number	100 475 DN = 4

CAD models

Request for quotation

Product selection

Type of connection

Index	Selector	Body	Ball	Stem	Ball seats	Stem seals
1	1	Steel	Steel, hard chrome plated	Steel	POM	NBR
2	2	Steel	Steel, hard chrome plated	Steel	POM	FKM
3	3	Steel	Steel, hard chrome plated	Steel	PTFE-Comp.3	FKM

Accessories

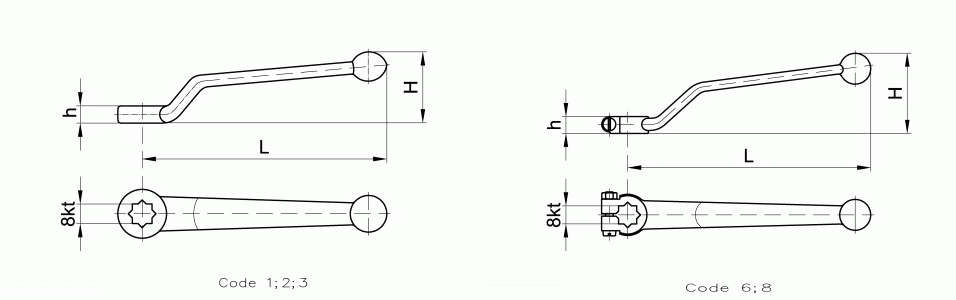

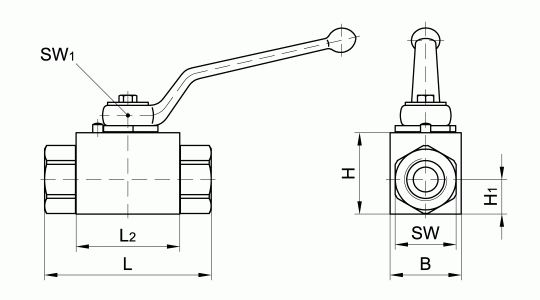

Index	Selector	Type of connection	DN	Thread D	RA (mm)	L (mm)	L1 (mm)	L2 (mm)	B (mm)	H (mm)	H1 (mm)	H2 (mm)	SW (mm)	SW1 (mm)	Handle code	Weight (kg)	PN (bar)	Article-No.	Handle 8kt (mm)	Handle L (mm)	Handle H (mm)	Handle h (mm)	Handle Article-No.	Accessories t (mm)	Accessories x (mm)	Accessories y (mm)	Accessories z (mm)	Accessories Article-No.
1	1	For cut (clamp) ring tube fittings with ball lining DIN 7601	4	M12 x 1,5	6	67	10	36	20	25	10	27.5	19	7	1	0.2	500	100 475	7	76	27	6	903000	0.8	18	9	20	-
2	2	For cut (clamp) ring tube fittings with ball lining DIN 7601	6	M14 x 1,5	8	67	10	36	20	25	10	27.5	19	7	1	0.2	500	100 476	7	76	27	6	903000	0.8	18	9	20	-
3	3	For cut (clamp) ring tube fittings with ball lining DIN 7601	8	M16 x 1,5	10	75	11	45	30	35	14.5	38.5	24	8	2	0.42	500	100 477	8	100	29	7	903001	1.2	21	9	20	-
4	4	For cut (clamp) ring tube fittings with ball lining DIN 7601	10	M18 x 1,5	12	75	11	45	30	35	14.5	38.5	24	8	2	0.42	500	100 478	8	100	29	7	903001	1.2	21	9	20	-
5	5	For cut (clamp) ring tube fittings with ball lining DIN 7601	12	M22 x 1,5	15	83	12	51	35	40	17	43.5	30	10	3	0.63	500	100 479	10	112.5	48	10	903002	1.2	24	9	20	-
6	6	For cut (clamp) ring tube fittings with ball lining DIN 7601	16	M26 x 1,5	18	82	12	50	45	45	20	49	36	11	6	0.85	400	100 480	11	166	56	12	903003	1.5	29	9	20	-
7	7	For cut (clamp) ring tube fittings with ball lining DIN 7601	20	M30 x 1,5	22	99	14	60	45	55	24	59	41	14	8	1.21	400	100 481	14	187	62	13	903004	1.5	34	9	20	-
8	8	For cut (clamp) ring tube fittings with ball lining DIN 7601	25	M38 x 1,5	28	108	14	70	55	60	26	64	50	14	8	1.75	400	100 482	14	187	62	13	903004	1.5	34	9	20	-
