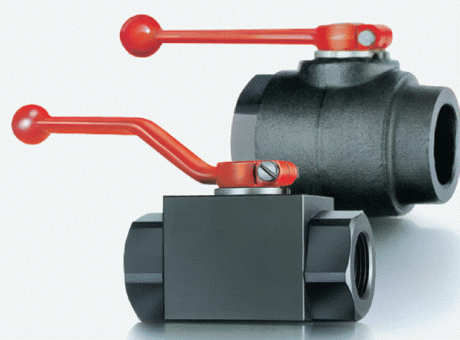

2-way ball valves with threaded connector Steel · DN 32 - DN 50 page 12

Manufacturer	RÖTELMANN
Description	2-way ball valves with threaded connector Steel · DN 32 - DN 50
Part number	100 251 DN = 32

CAD models

Request for quotation

Product selection

Type of connection

Index	Selector	Body	Ball	Stem	Ball seats	Stem seals
1	1	Steel	Steel, hard chrome plated	Steel	POM	NBR
2	2	Steel	Steel, hard chrome plated	Steel	POM	FKM
3	3	Steel	Steel, hard chrome plated	Steel	PTFE-Comp.3	FKM

Accessories

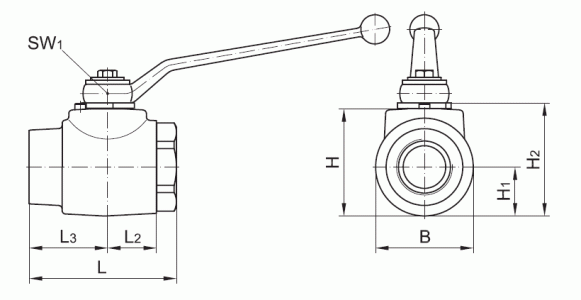

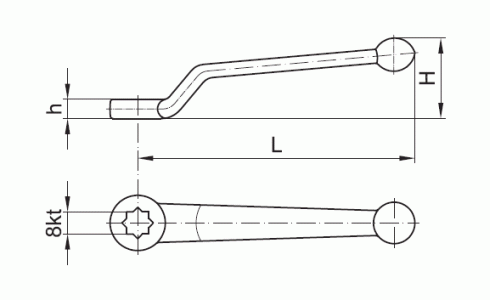

Index	Selector	Type of connection	DN	Thread D	RA (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	B (mm)	H (mm)	H1 (mm)	H2 (mm)	SW (mm)	SW1 (mm)	Handle code	Weight (kg)	PN (bar)	Article-No.	Handle 8kt (mm)	Handle L (mm)	Handle H (mm)	Handle h (mm)	Handle Article-No.	Accessories t (mm)	Accessories x (mm)	Accessories y (mm)	Accessories z (mm)	Accessories Article-No.
1	1	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	32	M45 x 2	35	121	16	36.5	58.5	73	80	36.5	84.5	60	17	22	2.59	400	100 251	17	320	76	17	903539	1.75	54	9	20	-
2	2	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	40	M52 x 2	42	118	16	40	52.5	85	90	42.5	94.5	75	17	22	3.24	400	100 252	17	320	76	17	903539	1.75	54	9	20	-
