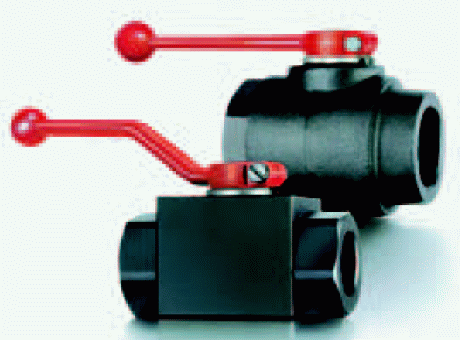

2-way ball valves with threaded connector, Steel · DN 10 · without check valve page 39

Manufacturer	RÖTELMANN
Description	2-way ball valves with threaded connector, Steel · DN 10 · without check valve
Part number	300 102 DN = 10/6
Omniclass number	23.27.31.15

CAD models

Product selection

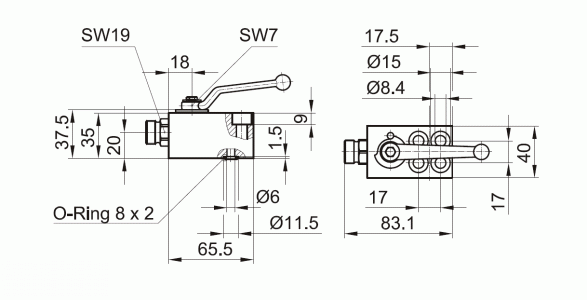

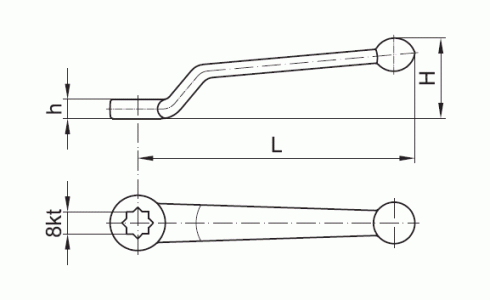

Index	Selector	Type of connection	DN	Thread D	RA (mm)	L1 (mm)	Handle code	Weight (kg)	PN (bar)	Article-No.	Handle 8kt (mm)	Handle L (mm)	Handle H (mm)	Handle h (mm)	Handle Article-No.	Body	Ball	Stem	Body seals	Ball seats	Stem seals
1	1	For cut (clamp) ring tube fittings DIN 2353 light series ISO 8434-1	10/6	M 18 x 1.5	12	11	1	0.7	315	300 102	7	76	27	6	903000	Steel	Steel, hard chrome plated	Steel	NBR	POM	NBR
