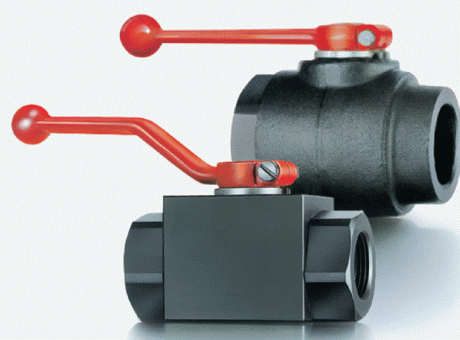

2-way ball valves with threaded connector Stainless Steel · DN 6 - DN 25 page 20

Manufacturer	RÖTELMANN
Description	2-way ball valves with threaded connector Stainless Steel · DN 6 - DN 25
Part number	100 900 DN = 6

CAD models

Request for quotation

Product selection

Type of connection

Index	Selector	Body	Ball	Stem	Ball seats	Stem seals
1	1	Stainless steel	Stainless steel	Stainless steel	PEEK	FKM

Accessories

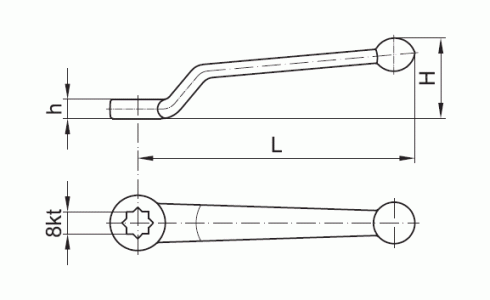

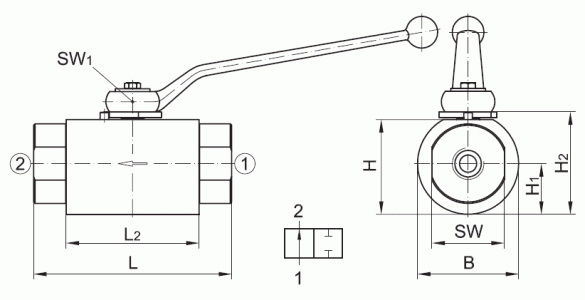

Index	Selector	Type of connection	DN	Thread D	RA (mm)	L (mm)	L1 (mm)	L2 (mm)	B (mm)	H (mm)	H1 (mm)	H2 (mm)	SW (mm)	SW1 (mm)	Handle code	Weight (kg)	PN (bar)	Article-No.	Handle 8kt (mm)	Handle L (mm)	Handle H (mm)	Handle h (mm)	Handle Article-No.	Accessories t (mm)	Accessories x (mm)	Accessories y (mm)	Accessories z (mm)	Accessories Article-No.
1	1	For cut (clamp) ring tube fittings DIN 2353 heavy series ISO 8434-1	6	M18 x 1,5	10	144	18	92	70	65.5	35	70	50	17	21	2.7	1500	100 900	17	211	66	14	903440	0.8	18	9	20	-
2	2	For cut (clamp) ring tube fittings DIN 2353 heavy series ISO 8434-1	8	M20 x 1,5	12	144	18	92	70	65.5	35	70	50	17	21	2.9	1500	100 901	17	211	66	14	903440	1.2	21	9	20	-
3	3	For cut (clamp) ring tube fittings DIN 2353 heavy series ISO 8434-1	10	M22 x 1,5	14	150	21	92	70	65.5	35	70	50	17	21	3	1500	100 902	17	211	66	14	903440	1.2	21	9	20	-
4	4	For cut (clamp) ring tube fittings DIN 2353 heavy series ISO 8434-1	12	M24 x 1,5	16	150	21	92	70	65.5	35	70	50	17	21	3.4	1500	100 903	17	211	66	14	903440	1.2	24	9	20	-
5	5	For cut (clamp) ring tube fittings DIN 2353 heavy series ISO 8434-1	20	M36 x 2	25	172	23	110	80	77	40	81.5	55	17	21	4.8	1400	100 994	17	211	66	14	903440	1.5	34	9	20	-
6	6	For cut (clamp) ring tube fittings DIN 2353 heavy series ISO 8434-1	25	M42 x 2	30	202	25	128	100	98	50	102.5	70	17	21	9.2	1000	100 991	17	211	66	14	903440	1.5	34	9	20	-
