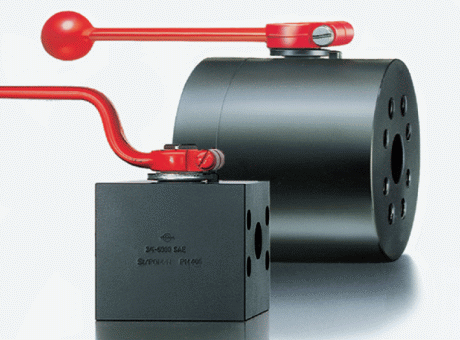

2-way ball valves with flange connection Steel · SAE · DN 13 - DN 51 · for split flanges page 42

Manufacturer	RÖTELMANN
Description	2-way ball valves with flange connection Steel · SAE · DN 13 - DN 51 · for split flanges
Part number	104 523 DN = 13

CAD models

Request for quotation

Product selection

Type of connection

Index	Selector	Body	Ball	Stem	Ball seats	Stem seals
1	1	Steel	Steel, hard chrome plated	Steel	POM	NBR
2	2	Steel	Steel, hard chrome plated	Steel	POM	FKM

Accessories

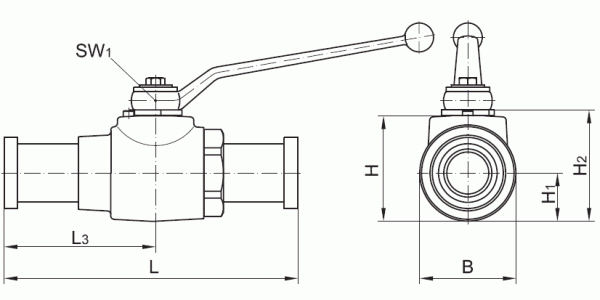

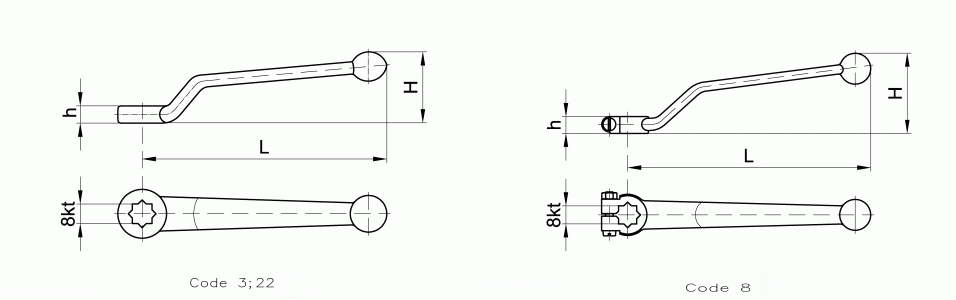

Index	Selector	Type of connection	DN	Flange size (inch)	D1 (mm)	D2 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	B (mm)	H (mm)	H1 (mm)	H2 (mm)	SW (mm)	SW1 (mm)	Handle code	Weight (kg)	O-Ring	PN (bar)	Article-No.	Handle 8kt (mm)	Handle L (mm)	Handle H (mm)	Handle h (mm)	Handle Article-No.	Accessories t (mm)	Accessories x (mm)	Accessories y (mm)	Accessories z (mm)	Accessories Article-No.
1	1	ISO 6162-1	13	1/2	30.2	24	151	42	6.8	75.5	35	40	17	43.5	32	10	3	0.9	18,64 x 3,53	350	104 523	10	112.5	48	10	903002	1.2	24	9	20	-
2	2	ISO 6162-1	19	3/4	38.1	31.5	162	43	6.8	81	45	55	24	59	41	14	8	1.7	24,99 x 3,53	350	104 524	14	187	62	13	903004	1.5	34	9	20	-
3	3	ISO 6162-1	25	1	44.45	38	178	38.9	8	89	55	60	26	64	50	14	8	2.5	32,92 x 3,53	315	104 501	14	187	62	13	903004	1.5	34	9	20	-
4	4	ISO 6162-1	32	11/4	50.8	43	190.5	40.3	8	99	73	80	36.5	84.5	60	17	22	3.8	37,69 x 3,53	250	104 502	17	320	76	17	903539	1.75	54	9	20	-
5	5	ISO 6162-1	38	11/2	60.35	50	231	58.3	8	115.5	85	90	42.5	94.5	70	17	22	4.5	47,22 x 3,53	200	104 503	17	320	76	17	903539	1.75	54	9	20	-
6	6	ISO 6162-1	51	2	71.4	62	232	50.9	9.6	116	99	104	49.5	108.5	85	17	22	6.1	56,74 x 3,53	160	104 504	17	320	76	17	903539	1.75	54	9	20	-
