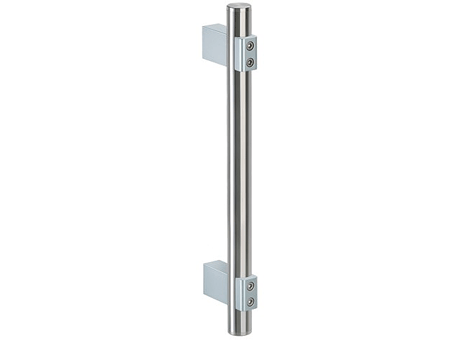

Technical Line, Handle series TL.U6

Manufacturer	Rohde AG
Description	Handle Series TL.U6
Part number	TL.U6-30.F200.37
Material	Tube of stainless steel, material no. 1.4301, fine ground. Tube holder of aluminium AlMgSi 0.5, natural colour anodized with dull-bright finish. End caps of stainless steel, material no. 1.4305, precision lathed.

CAD models

Request for quotation

Product selection

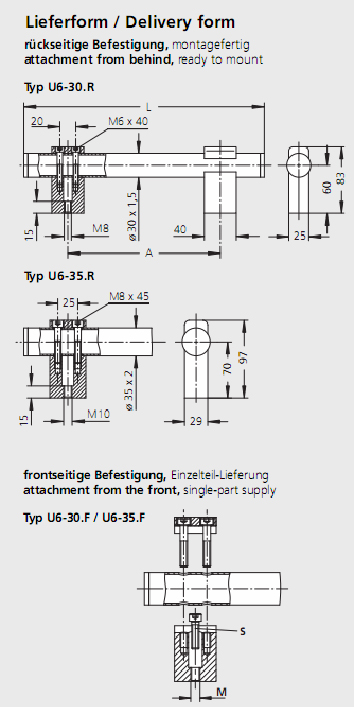

Index	Selector	Order-no.	A (mm)	L (mm)	S	M	Handle
1	1	TL.U6-30.F200.37	200	310	M6x30	M8	attachment from the front
2	2	TL.U6-30.F250.37	250	360	M6x30	M8	attachment from the front
3	3	TL.U6-30.F300.37	300	410	M6x30	M8	attachment from the front
4	4	TL.U6-30.F350.37	350	460	M6x30	M8	attachment from the front
5	5	TL.U6-30.F400.37	400	510	M6x30	M8	attachment from the front
6	6	TL.U6-30.F500.37	500	610	M6x30	M8	attachment from the front
7	7	TL.U6-35.F300.37	300	410	M8x30	M10	attachment from the front
8	8	TL.U6-35.F400.37	400	510	M8x30	M10	attachment from the front
9	9	TL.U6-35.F500.37	500	610	M8x30	M10	attachment from the front
10	10	TL.U6-35.F600.37	600	710	M8x30	M10	attachment from the front
11	11	TL.U6-35.F700.37	700	810	M8x30	M10	attachment from the front
12	12	TL.U6-35.F800.37	800	910	M8x30	M10	attachment from the front
13	13	TL.U6-30.R200.37	200	310	M6x30	M8	attachment from behind
14	14	TL.U6-30.R250.37	250	360	M6x30	M8	attachment from behind
15	15	TL.U6-30.R300.37	300	410	M6x30	M8	attachment from behind
16	16	TL.U6-30.R350.37	350	460	M6x30	M8	attachment from behind
17	17	TL.U6-30.R400.37	400	510	M6x30	M8	attachment from behind
18	18	TL.U6-30.R500.37	500	610	M6x30	M8	attachment from behind
