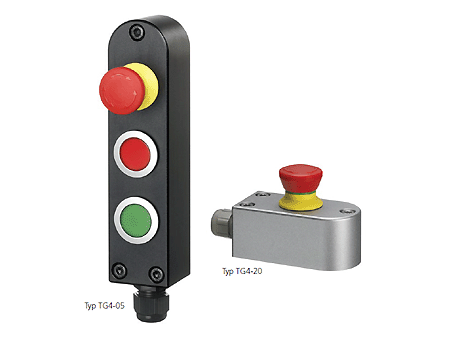

Switch housing, Switch housing TG4

Manufacturer	Rohde AG
Description	Switch housing TG4, 1 push button
Part number	TG4-01.080.01
Material	Housing made of aluminum AlMgSi 0.5; natural or black anodized.
Note	Connection: Connection cable 10 m 8-pole, 12-pole or 18-pole. Protection class: IP65

CAD models

Product selection

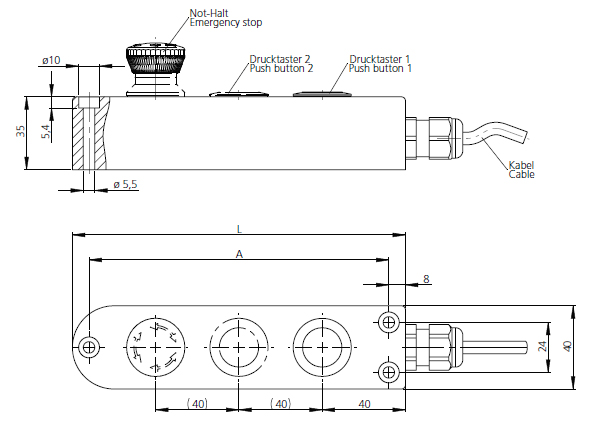

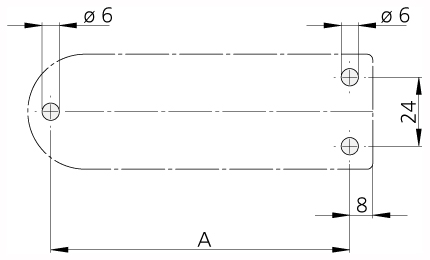

Index	Selector	Type	Order number	A (mm)	L (mm)	Color
1	1	1 push button	TG4-01.080.01	64	80	Standard natural color
2	2	1 push button	TG4-01.080.04	64	80	Standard black
3	3	1 push button	TG4-01.080.11	64	80	Satin finish natural color
4	4	1 push button	TG4-01.080.14	64	80	Satin finish black
5	5	2 push buttons	TG4-02.120.01	104	120	Standard natural color
6	6	2 push buttons	TG4-02.120.04	104	120	Standard black
7	7	2 push buttons	TG4-02.120.11	104	120	Satin finish natural color
8	8	2 push buttons	TG4-02.120.14	104	120	Satin finish black
9	9	Emergency stop	TG4-20.080.01	64	80	Standard natural color
10	10	Emergency stop	TG4-20.080.04	64	80	Standard black
11	11	Emergency stop	TG4-20.080.11	64	80	Satin finish natural color
12	12	Emergency stop	TG4-20.080.14	64	80	Satin finish black
13	13	Emergency stop + 1 push button	TG4-04.120.01	104	120	Standard natural color
14	14	Emergency stop + 1 push button	TG4-04.120.04	104	120	Standard black
15	15	Emergency stop + 1 push button	TG4-04.120.11	104	120	Satin finish natural color
16	16	Emergency stop + 1 push button	TG4-04.120.14	104	120	Satin finish black
17	17	Emergency stop + 2 push buttons	TG4-05.160.01	144	160	Standard natural color
18	18	Emergency stop + 2 push buttons	TG4-05.160.04	144	160	Standard black
19	19	Emergency stop + 2 push buttons	TG4-05.160.11	144	160	Satin finish natural color
20	20	Emergency stop + 2 push buttons	TG4-05.160.14	144	160	Satin finish black
