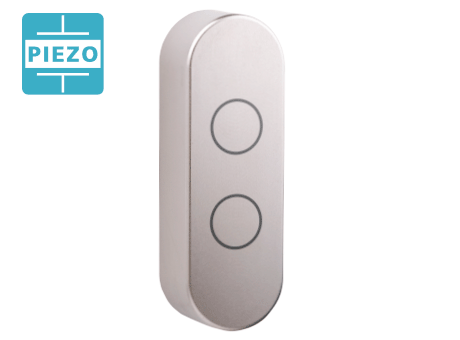

Switch housing, Series TG8, piezo technology

Manufacturer	Rohde AG
Description	Switch housing TG8, 2 control panels
Part number	TG8-PI2.100.46
Material and surface	Housing made of stainless steel 1.4404 (AISI 316L); blasted and electropolished
Functional elements	2 piezo elements as normally open contacts. Actuation by pressing marked housing area
Connection	4-pin connector on the back of the button housing
Protection class	IP 67
Note	Labeling according to customer requirements possible
