Switch housing, Series TG6

Manufacturer	Rohde AG

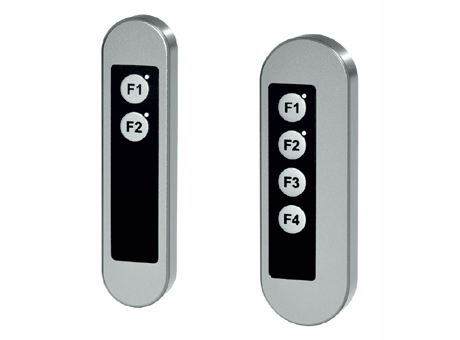

Description	Switch housing TG6-E2, 2 push buttons, type A
Part number	TG6-E2.A120.46
Material and surface	Housing made of stainless steel 1.4404 (316L); blasted and electropolished.

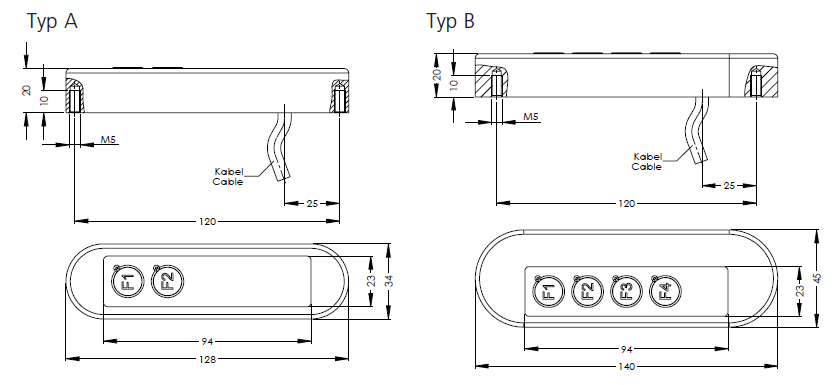

Design features	Type A narrow version.
Functional elements	membrane keypad 2 Push buttons (NO contact)

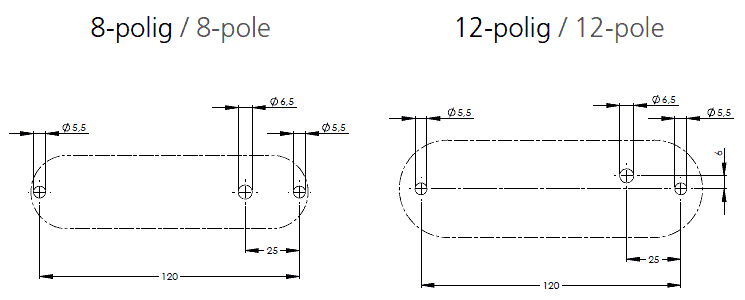

Connection	Connection cable 5m 8-pole or 12-pole.
Protection	IP 65

CAD models

Request for quotation

Product selection

Index	Selector	Type	Description	Order no.
1	1	2 push buttons, type A	Switch housing TG6-E2	TG6-E2.A120.46
2	2	2 push buttons, type B	Switch housing TG6-E2	TG6-E2.B120.46
3	3	4 push buttons, type A	Switch housing TG6-E4	TG6-E4.A120.46
4	4	4 push buttons, type B	Switch housing TG6-E4	TG6-E4.B120.46

Documentation
