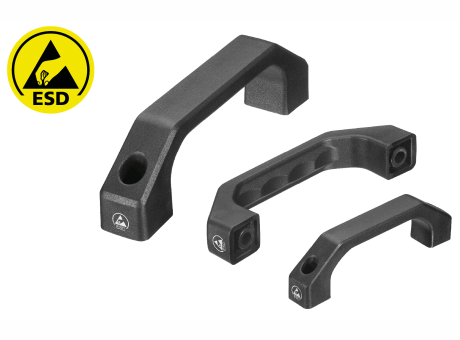

Plastic bow-type handles, Handle series RG, ESD version

Handles to protect sensitive electronic parts and components

Manufacturer	Rohde AG
Description	Plastic bow-type handles, Handle series RG, ESD version, A=100
Part number	RG-1N.100.ESD
Material and surface	Handle made of polyamid PA6, glass ball reinforced, black with fine structure.
Stress resistance	min. 1,000 N.
Scope of delivery	Cheese head screws with hexagon sockets, nuts and washers of stainless steel. Also available without screws.

CAD models

Request for quotation

Product selection

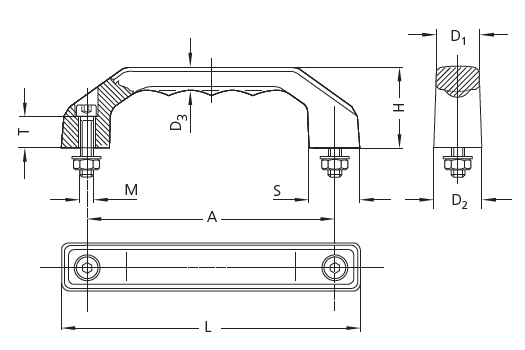

Index	Selector	Order number	A (mm)	L (mm)	M	T (mm)	H (mm)	D1 (mm)	D2 (mm)	D3 (mm)	S (mm)	Type
1	1	RG-1N.100.ESD	100	122	M5 x 22	13	33	17	19	8.5	20	with screws
2	2	RG-1N.120.ESD	120	146	M6 x 25	15	39	20.5	24	10.5	24	with screws
3	3	RG-1N.140.ESD	140	170	M8 x 30	16	45	24	27	12	28	with screws
4	4	RG-1N.160.ESD	160	194	M8 x 35	20	52	27.5	31	13.5	32	with screws
5	5	RG-1N.180.ESD	180	218	M10 x 40	20	58	31	35	15.5	36	with screws
6	6	RG-1P.100.ESD	100	122	M5 x 22	13	33	17	19	8.5	20	without screws
7	7	RG-1P.120.ESD	120	146	M6 x 25	15	39	20.5	24	10.5	24	without screws
8	8	RG-1P.140.ESD	140	170	M8 x 30	16	45	24	27	12	28	without screws
9	9	RG-1P.160.ESD	160	194	M8 x 35	20	52	27.5	31	13.5	32	without screws
10	10	RG-1P.180.ESD	180	218	M10 x 40	20	58	31	35	15.5	36	without screws
