Plastic bow type handles, Handle series RG

Manufacturer	Rohde AG

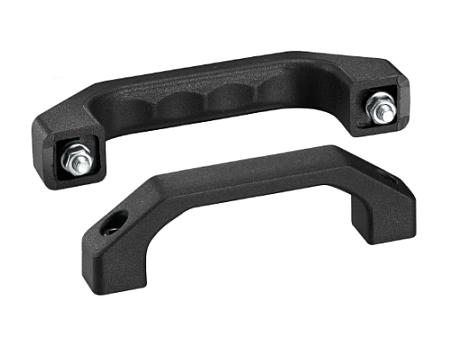

Description	Plastic bow type handles, Handle series RG
Part number	RG-1S.100.84
Material	Polyamide PA 6, glass ball reinforced, black or orange with fine structure.
Note	Stress resistance: min. 1.000 N.

CAD models

Request for quotation

Product selection

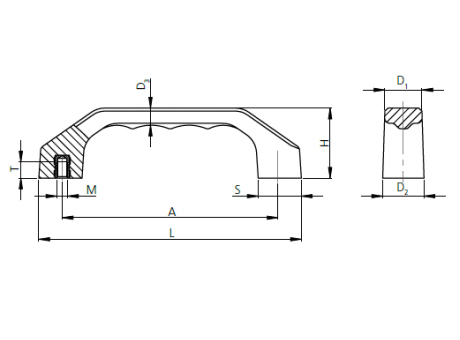

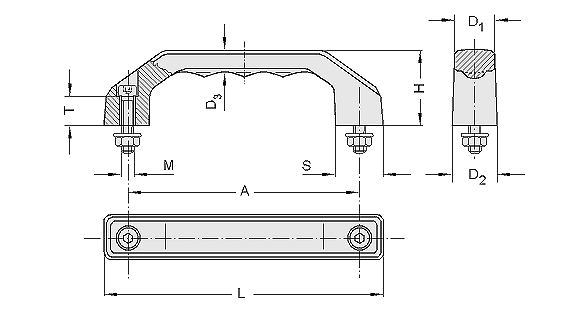

Index	Selector	A (mm)	L (mm)	Order number	M	T (mm)	H (mm)	D1 (mm)	D2 (mm)	D3 (mm)	S (mm)	Colour	Type
1	1	100	122	RG-1S.100.84	M 5x22	13	33	17	19	8.5	20	black	Standard
2	2	120	146	RG-1S.120.84	M 6x25	15	39	20.5	23	10.5	24	black	Standard
3	3	140	170	RG-1S.140.84	M 8x30	16	45	24	27	12	28	black	Standard
4	4	160	194	RG-1S.160.84	M 8x35	20	52	27.5	31	13.5	32	black	Standard
5	5	180	218	RG-1S.180.84	M 10x40	20	58	31	35	15.5	36	black	Standard
6	6	100	122	RG-1S.100.09	M 5x22	13	33	17	19	8.5	20	orange	Standard
7	7	120	146	RG-1S.120.09	M 6x25	15	39	20.5	23	10.5	24	orange	Standard
8	8	140	170	RG-1S.140.09	M 8x30	16	45	24	27	12	28	orange	Standard
9	9	160	194	RG-1S.160.09	M 8x35	20	52	27.5	31	13.5	32	orange	Standard
10	10	180	218	RG-1S.180.09	M 10x40	20	58	31	35	15.5	36	orange	Standard
11	11	100	122	RG-1N.100.84	M 5x22	13	33	17	19	8.5	20	black	für Nassbereiche
12	12	120	146	RG-1N.120.84	M 6x25	15	39	20.5	23	10.5	24	black	für Nassbereiche
13	13	140	170	RG-1N.140.84	M 8x30	16	45	24	27	12	28	black	für Nassbereiche
14	14	160	194	RG-1N.160.84	M 8x35	20	52	27.5	31	13.5	32	black	für Nassbereiche
15	15	180	218	RG-1N.180.84	M 10x40	20	58	31	35	15.5	36	black	für Nassbereiche
16	16	100	122	RG-1N.100.09	M 5x22	13	33	17	19	8.5	20	orange	für Nassbereiche
17	17	120	146	RG-1N.120.09	M 6x25	15	39	20.5	23	10.5	24	orange	für Nassbereiche
18	18	140	170	RG-1N.140.09	M 8x30	16	45	24	27	12	28	orange	für Nassbereiche
19	19	160	194	RG-1N.160.09	M 8x35	20	52	27.5	31	13.5	32	orange	für Nassbereiche
20	20	180	218	RG-1N.180.09	M 10x40	20	58	31	35	15.5	36	orange	für Nassbereiche
21	21	100	122	RG-1P.100.84	M 5x22	13	33	17	19	8.5	20	black	ohne Schrauben
22	22	120	146	RG-1P.120.84	M 6x25	15	39	20.5	23	10.5	24	black	ohne Schrauben
23	23	140	170	RG-1P.140.84	M 8x30	16	45	24	27	12	28	black	ohne Schrauben
24	24	160	194	RG-1P.160.84	M 8x35	20	52	27.5	31	13.5	32	black	ohne Schrauben
25	25	180	218	RG-1P.180.84	M 10x40	20	58	31	35	15.5	36	black	ohne Schrauben
26	26	100	122	RG-1P.100.09	M 5x22	13	33	17	19	8.5	20	orange	ohne Schrauben
27	27	120	146	RG-1P.120.09	M 6x25	15	39	20.5	23	10.5	24	orange	ohne Schrauben
28	28	140	170	RG-1P.140.09	M 8x30	16	45	24	27	12	28	orange	ohne Schrauben
29	29	160	194	RG-1P.160.09	M 8x35	20	52	27.5	31	13.5	32	orange	ohne Schrauben
30	30	180	218	RG-1P.180.09	M 10x40	20	58	31	35	15.5	36	orange	ohne Schrauben
31	31	120	146	RG-1P.R120.84	M 6	9	39	20.5	24	10.5	24	black	for rear attachment
32	32	140	170	RG-1P.R140.84	M 8	12	45	24	27	12	28	black	for rear attachment
33	33	140	170	RG-1S.140.PPA	-	10	45	24	27	12	28	black	high temperature resistant
